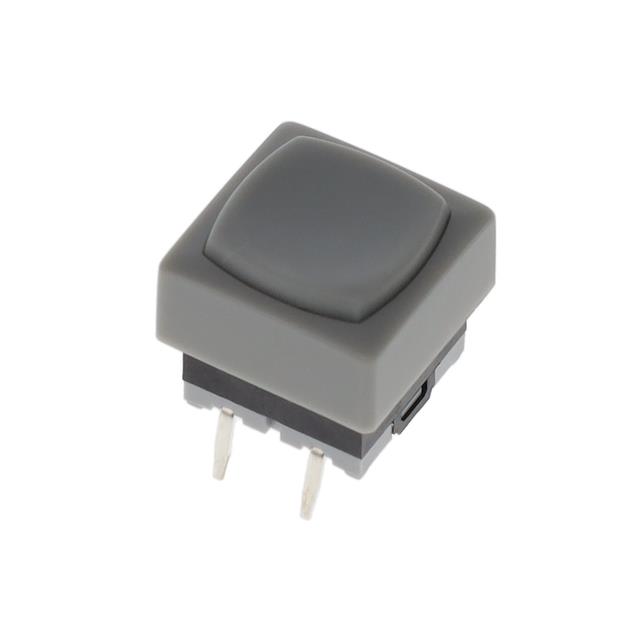

JB15HKP-4HH

Active

NKK Switches

LOW PROFILE PROCESS SEALED TACTILE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JB15HKP-4HH

Actuator Height off PCB, Vertical [z]	11.2 mm
Actuator Material	Polyacetal
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.125 A, 24 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	265 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

JB15HKP Series

Part	Switch Function	Switch Travel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Mechanical Life	Features	Operating Force	Mounting Type	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Termination Style	Illumination	Circuit	Actuator Material	Ingress Protection	Actuator Type
NKK Switches JB15HKP-1G	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-2A	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-1H	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-2G	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-4HH	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-2H	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-1B	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-1A	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
NKK Switches JB15HKP-2C	Off-Mom	0.3 mm	70 °C	-25 °C	0.125 A 24 VDC	1000000 Cycles	Process Sealed	265 gf	Through Hole	Top Actuated	11.2 mm	10 mm	10 mm	PC Pin	Non-Illuminated	SPST-NO	Polyacetal	IP67 - Dust Tight Waterproof	Square Button
