FM4-U120-9B560

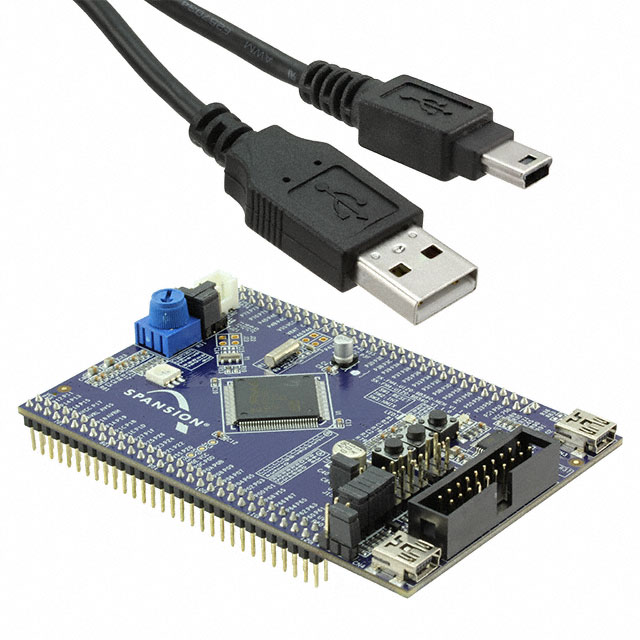

ObsoleteTO LIST FOR EVALUATION BOARD THE SK-FM4-U120-9B560-MEM EVALUATION BOARD ENABLES YOU TO DEVELOP AND TEST SOFTWARE FOR THE MB9B560M/N/R FAMILY OF ARM CORTEX™-M4 BASED DEVICES. IT IS EQUIPPED WITH THE SUPERSET DEVICE MB9BF568RPMC AND EXTERNAL FLASH AND SDRAM MEMORY.
Deep-Dive with AI
Search across all available documentation for this part.
FM4-U120-9B560
ObsoleteTO LIST FOR EVALUATION BOARD THE SK-FM4-U120-9B560-MEM EVALUATION BOARD ENABLES YOU TO DEVELOP AND TEST SOFTWARE FOR THE MB9B560M/N/R FAMILY OF ARM CORTEX™-M4 BASED DEVICES. IT IS EQUIPPED WITH THE SUPERSET DEVICE MB9BF568RPMC AND EXTERNAL FLASH AND SDRAM MEMORY.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FM4-U120-9B560 |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Cable(s), Board(s) |
| Core Processor | ARM® Cortex®-M4F |
| Mounting Type | Fixed |
| Suggested Programming Environment | IAR EW, Keil µVision |
| Type | MCU 32-Bit |
| Utilized IC / Part | MB9BF568R |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.94 | |
Description
General part information
FM4-U120 Series
The SK-FM4-U120-9B560-MEM evaluation board enables you to develop and test software for the CY9BFx6xM/N/R-Series of Arm® Cortex®-M4 based devices. It is equipped with the superset device CY9BF568R and external Flash and SDRAM memory.
Documents
Technical documentation and resources
