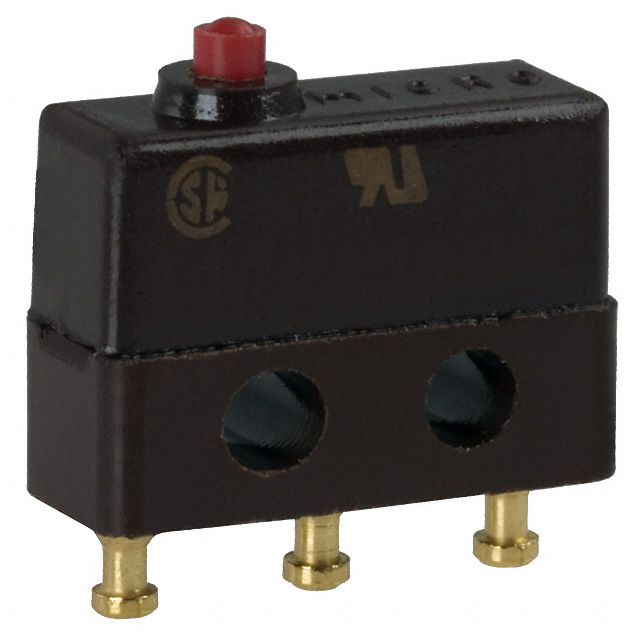

11SX1-T

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 250V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 17.47

General part information

Switch SPDT Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	11SX1-T	11SX1 Series

Actuator Type	Round (Pin Plunger)	Lever, Straight, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	3 - 5 A
Differential Travel	0.025 mm	0.025 - 0.5 mm
Differential Travel	0.001 in	0.001 - 0.02 in
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	99 gf	50 - 99 gf
Operating Position	8.13 mm	8.13 - 8.43 mm
Operating Position	0.32 in	0.32 - 0.332 in
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overtravel	0.004 in	0.004 - 0.014 in
Overtravel	0.1 mm	0.1 - 0.35 mm
Pretravel	0.02 in	0.02 - 0.065 in
Pretravel	0.5 mm	0.5 - 1.65 mm
Release Force	21 gf	9.177 - 21 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Turret	Solder Turret, Quick Connect - 0.058 in (Round)
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - DC	28 V	28 V

SWITCH SNAP ACTION SPDT 5A 125V

Part	Mounting Type	Current Rating (Amps)	Pretravel	Pretravel	Actuator Type	Overtravel	Overtravel	Voltage Rating - AC	Termination Style	Mechanical Life	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Operating Force	Operating Position	Operating Position	Voltage Rating - DC	Differential Travel	Differential Travel	Circuit
Honeywell Sensing and Productivity Solutions 311SX1-T	Chassis Mount	5 A	1.65 mm	0.065 in	Lever, Straight	0.014 in	0.35 mm	125 V	Solder Turret	10000000 Cycles	9.177 gf	-55 °C	125 °C	On-Mom	50 gf	0.332 in	8.43 mm	28 V	0.5 mm	0.02 in	SPDT
Honeywell Sensing and Productivity Solutions 11SX1-T	Chassis Mount	3 A	0.5 mm	0.02 in	Round (Pin Plunger)	0.004 in	0.1 mm	250 V	Solder Turret	10000000 Cycles	21 gf	-55 °C	125 °C	On-Mom	99 gf	0.32 in	8.13 mm	28 V	0.025 mm	0.001 in	SPDT
Honeywell Sensing and Productivity Solutions 11SX1-H58	Chassis Mount	3 A	0.5 mm	0.02 in	Round (Pin Plunger)	0.004 in	0.1 mm	250 V	Quick Connect - 0.058 in (Round)	10000000 Cycles	21 gf	-55 °C	125 °C	On-Mom	99 gf	0.32 in	8.13 mm	28 V	0.025 mm	0.001 in	SPDT
