Q-0101P0001036i

Active

Amphenol Custom Cable

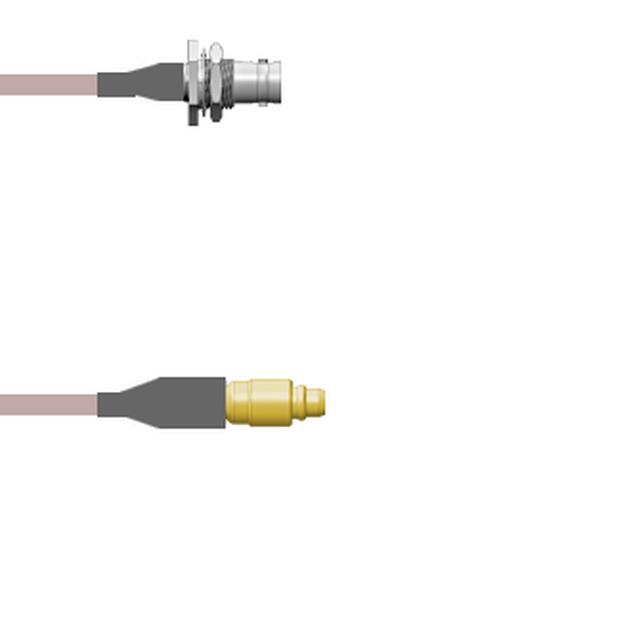

CBL ASSY BNC-MMCX JACK-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0101P0001036i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.93
		25	$ 75.42
		50	$ 73.91
		100	$ 72.40
		250	$ 70.90

Description

General part information

Q-0101P0 Series

Cable Assembly Coaxial BNC to MMCX RG-178 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available

Specification	Q-0101P0001036i	Q-0101P0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	MMCX Plug	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	91.44 cm	1 - 1200 m
Length	36 in	3 - 118.1 in
Length	-	3.3 - 9.8 ft
Length	-	457.2 mm
Length	-	250 - 457.2 mm
Length	-	9.843 "
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MMCX	BNC to MMCX

Part	Features	1st Connector Mounting Type	2nd Connector	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Feature	1st Connector	Style	1st Contact Gender	Color	Cable Type	Overall Impedance	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0101P00011.5M	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	59.1 in	4.9 ft	1.5 m
Amphenol Custom Cable Q-0101P0001060i	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	5 '	5 ft	1.5 m
Amphenol Custom Cable Q-0101P0001006i	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	6 in		152.4 mm
Amphenol Custom Cable Q-0101P0001018i	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms				457.2 mm	457.2 mm
Amphenol Custom Cable Q-0101P0001001M	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	39.4 in	3.3 ft	1 m
Amphenol Custom Cable Q-0101P0001036i	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	36 in		91.44 cm
Amphenol Custom Cable Q-0101P0001009i	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	9 "		228.6 mm
Amphenol Custom Cable Q-0101P0001003M	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	118.1 in	9.8 '	3 m
Amphenol Custom Cable Q-0101P0001072i	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	72 in	6 ft	1.8 m
Amphenol Custom Cable Q-0101P0001003i	Shielded	Panel Mount	MMCX Plug	Free Hanging (In-Line)	4 GHz	Male	Bulkhead - Front Side Nut	BNC Jack	BNC to MMCX	Female	Copper	RG-178	50 Ohms	3 in		76.2 mm
