9390 060500

Active

Belden Inc.

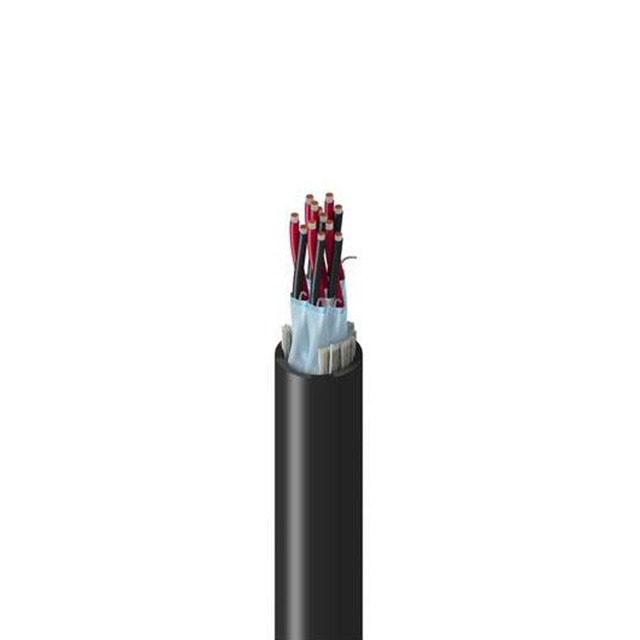

MULTI-PAIR 18COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 18COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9390 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Direct Burial, Ripcord, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	16.49 mm
Jacket (Insulation) Diameter [diameter]	0.649 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket Color	Features	Number of Conductors	Cable Type	Shield Coverage	Ratings	Length [x]	Length [x]	Shield Type	Usage	Jacket (Insulation) Material	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length
Belden Inc. 9390 060500	16.49 mm	0.649 "	1.6 mm	0.063 in	Poly-Vinyl Chloride (PVC)	18 AWG	19	30 AWG	Aluminum	Chrome	Direct Burial Drain Wire Ripcord UV Resistant	18	Multi-Pair	100 %	UL Style 2464	500 '	152.4 m	Foil	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	Copper Tinned	-30 ░C	105 ░C
Belden Inc. 9390 0601000	16.49 mm	0.649 "	1.6 mm	0.063 in	Poly-Vinyl Chloride (PVC)	18 AWG	19	30 AWG	Aluminum	Chrome	Direct Burial Drain Wire Ripcord UV Resistant	18	Multi-Pair	100 %	UL Style 2464			Foil	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	Copper Tinned	-30 ░C	105 ░C	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 21.71

General part information

18 (9 Pair) Conductor Multi-Pair Cable Chrome 18 AWG Foil 500.0' (152.4m)
