FWE050018A-10A

Active

Inventus Power

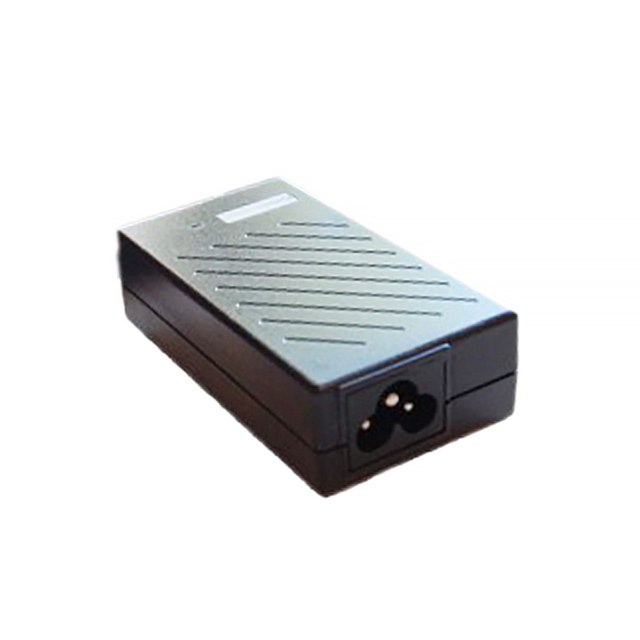

AC/DC DESKTOP ADAPTER 18V 50W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 18V 50W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 18V 50W

Part	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Applications	Cord Length	Cord Length	No Load Power Consumption	Voltage - Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Input Type	Form	Approval Agency	Current - Output (Max) [Max]	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Power (Watts)	Standard Number	Input Connector
Inventus Power FWE050018A-10A	Positive Center	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	1.22 m	48 in	100 mW	18 V	114.2 mm	2.26 in	36.5 mm	1.44 "	4.5 in	57.5 mm	0.4 lb	181.44 g	Cord	Desktop (Class I)	CB, CCC, CE, cTUVus	2.78 A	International	60 °C	0 °C	Level VI	50 W	62368-1	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	240	$ 27.31
