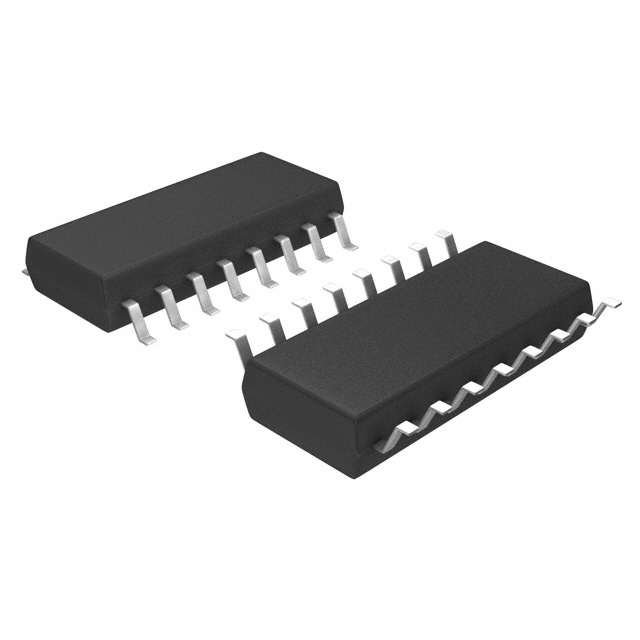

M63991FP
UnknownPowerex Inc.
IC HALF BRIDGE DRIVER 16SOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M63991FP
UnknownPowerex Inc.
IC HALF BRIDGE DRIVER 16SOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M63991FP |
|---|---|
| Applications | AC Motors |
| Current - Peak Output | 500 mA |
| Interface | Logic |
| Load Type | Inductive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (2) |
| Package / Case | 0.209 " |
| Package / Case | 16-SOIC |
| Package / Case | 5.3 mm |
| Rds On (Typ) | 40 Ohm, 20 Ohm |
| Supplier Device Package | 16-SOP |
| Technology | Power MOSFET |
| Voltage - Load | 500 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 78 | $ 2.93 | |
Description
General part information
M63991 Series
Half Bridge (2) Driver AC Motors Power MOSFET 16-SOP
