DG200-7EC

Active

Tri-Mag, LLC

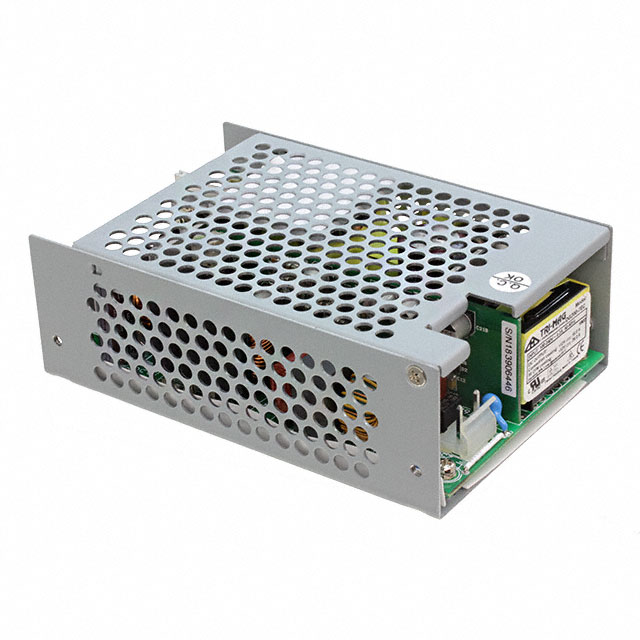

AC/DC CONVERTER 12V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DG200-7EC

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DG200-7EC	DG200 Series

Applications	ITE (Commercial)	ITE (Commercial), Medical
Approval Agency	CE, CB	CE, CB
Current - Output 1	16.5 A	4.2 - 16.5 A
Efficiency	90 %	90 %
Features	Standby Output, Universal Input, PFC	Standby Output, Universal Input, PFC
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	300 W	300 W
Power (Watts)	200 W	200 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [z]	36.1 mm	36.1 mm
Size / Dimension [z]	1.42 in	1.42 in
Type	Enclosed	Enclosed, Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 48 V

DG200 Series

AC/DC CONVERTER 24V 200W

Part	Current - Output 1	Features	Efficiency	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Type	Applications	Mounting Type	Power (Watts)	Power (Watts)	Voltage - Isolation
Tri-Mag, LLC DG200-9EC	8.4 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	24 V	90 VAC	264 VAC	1	Enclosed	ITE (Commercial)	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-8EC	12 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	15 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-JEC	4.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	48 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-GEC	7.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	28 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200-J	4.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	48 V	90 VAC	264 VAC	1	Open Frame	ITE (Commercial)	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-GEU	7.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	28 V	90 VAC	264 VAC	1	Open Frame	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-7EU	16.5 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	12 V	90 VAC	264 VAC	1	Open Frame	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-3EU	11.1 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	18 V	90 VAC	264 VAC	1	Open Frame	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-3EC	11.1 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	18 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200-JEU	4.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	48 V	90 VAC	264 VAC	1	Open Frame	ITE (Commercial)	Chassis Mount	300 W	200 W	4000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 135.04

Description

General part information

DG200 Series

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources
