DG200M-7EU

Active

Tri-Mag, LLC

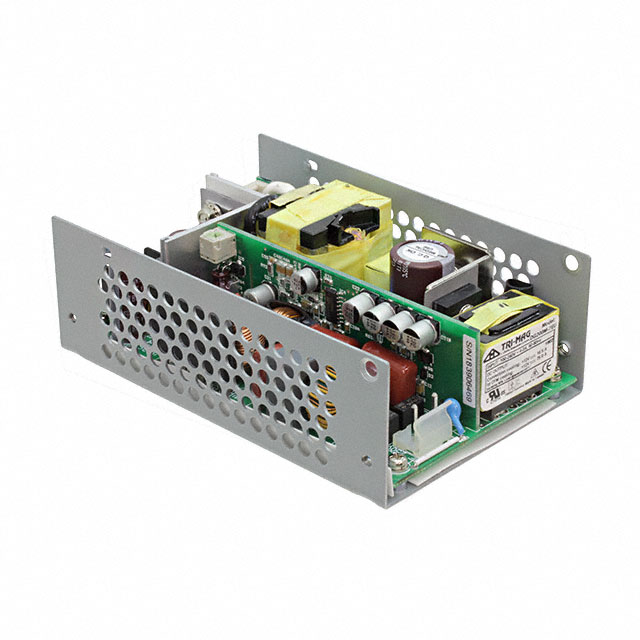

AC/DC CONVERTER 12V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DG200M-7EU

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.84

Description

General part information

DG200 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DG200M-7EU	DG200 Series

Applications	Medical	ITE (Commercial), Medical
Approval Agency	CE, CB	CE, CB
Current - Output 1	16.5 A	4.2 - 16.5 A
Efficiency	90 %	90 %
Features	Standby Output, Universal Input, PFC	Standby Output, Universal Input, PFC
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	300 W	300 W
Power (Watts)	200 W	200 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [z]	36.1 mm	36.1 mm
Size / Dimension [z]	1.42 in	1.42 in
Type	Open Frame	Enclosed, Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 48 V

DG200 Series

AC/DC CONVERTER 24V 200W

Part	Current - Output 1	Features	Efficiency	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Type	Applications	Mounting Type	Power (Watts)	Power (Watts)	Voltage - Isolation
Tri-Mag, LLC DG200-9EC	8.4 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	24 V	90 VAC	264 VAC	1	Enclosed	ITE (Commercial)	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-8EC	12 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	15 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-JEC	4.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	48 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-GEC	7.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	28 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200-J	4.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	48 V	90 VAC	264 VAC	1	Open Frame	ITE (Commercial)	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-GEU	7.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	28 V	90 VAC	264 VAC	1	Open Frame	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-7EU	16.5 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	12 V	90 VAC	264 VAC	1	Open Frame	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-3EU	11.1 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	18 V	90 VAC	264 VAC	1	Open Frame	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200M-3EC	11.1 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	18 V	90 VAC	264 VAC	1	Enclosed	Medical	Chassis Mount	300 W	200 W	4000 V
Tri-Mag, LLC DG200-JEU	4.2 A	PFC, Standby Output, Universal Input	90 %	CB, CE	65 °C	-20 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	48 V	90 VAC	264 VAC	1	Open Frame	ITE (Commercial)	Chassis Mount	300 W	200 W	4000 V
