Description

General part information

345-060 Series

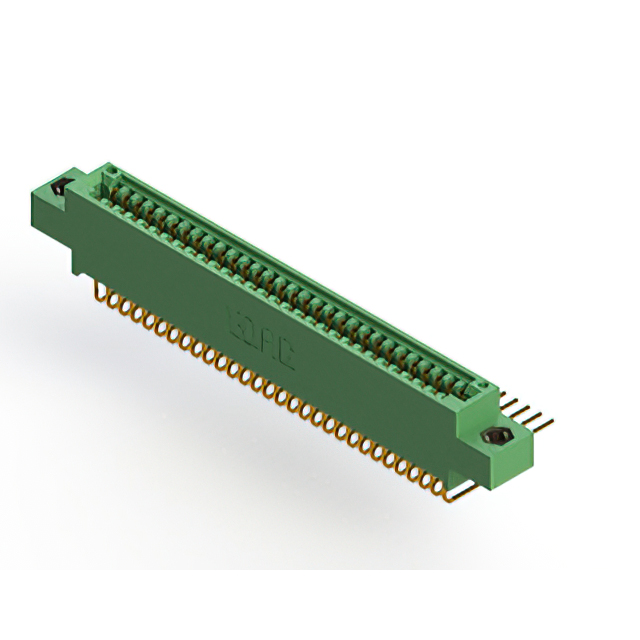

60 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	345-060-559-807

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Threaded Insert, M3
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	60, 30
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

345-060 Series

...

Part	Gender	Contact Material	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Number of Rows	Pitch	Color	Number of Positions	Flange Feature	Read Out	Mounting Type	Contact Finish Thickness	Termination	Card Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Termination Rows	Material - Insulation	Features	Flange Feature Diameter
EDAC Inc. 345-060-524-207	Female	Copper Alloy	0.054 in	0.07 in	Gold	2	0.1 in	Green	30 60	Flush Mount M3 Threaded Insert Top Opening	Dual	Through Hole	10 Ąin	Solder	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	2 rows	Polyester Thermoplastic
EDAC Inc. 345-060-523-478	Female	Copper Alloy	0.054 in	0.07 in	Gold	1	0.1 in	Green	60	4-40 Threaded Insert Top Mount Opening	Single	Through Hole	10 Ąin	Solder	Non Specified Single Edge	-40 °C	105 °C	Cantilever	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-060-540-102	Female	Copper Alloy	0.054 in	0.07 in	Gold	1	0.1 in	Green	60	Flush Mount Top Opening Unthreaded	Single	Through Hole	10 Ąin	Wire Wrap	Non Specified Single Edge	-40 °C	105 °C	Cantilever	1 rows	Polyester Thermoplastic		0.128 in
EDAC Inc. 345-060-542-812	Female	Copper Alloy	0.054 in	0.07 in	Gold	2	0.1 in	Green	30 60	Side Mount Opening Unthreaded	Dual	Through Hole	10 Ąin	Wire Wrap	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	2 rows	Polyester Thermoplastic		0.128 in
EDAC Inc. 345-060-559-888	Female	Copper Alloy	0.054 in	0.07 in	Gold	2	0.1 in	Green	30 60	4-40 Threaded Insert Top Mount Opening	Dual	Right Angle Through Hole	10 Ąin	Solder	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-060-542-107	Female	Copper Alloy	0.054 in	0.07 in	Gold	1	0.1 in	Green	60	Flush Mount M3 Threaded Insert Top Opening	Single	Through Hole	10 Ąin	Wire Wrap	Non Specified Single Edge	-40 °C	105 °C	Cantilever	1 rows	Polyester Thermoplastic
EDAC Inc. 345-060-559-807	Female	Copper Alloy	0.054 in	0.07 in	Gold	2	0.1 in	Green	30 60	M3 Threaded Insert Top Mount Opening	Dual	Right Angle Through Hole	10 Ąin	Solder	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	2 rows	Polyester Thermoplastic
EDAC Inc. 345-060-540-512	Female	Copper Alloy	0.054 in	0.07 in	Gold	2	0.1 in	Green	30 60	Side Mount Opening Unthreaded	Dual	Through Hole	10 Ąin	Wire Wrap	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	2 rows	Polyester Thermoplastic		0.128 in
EDAC Inc. 345-060-520-578	Female	Copper Alloy	0.054 in	0.07 in	Gold	2	0.1 in	Green	30 60	4-40 Threaded Insert Top Mount Opening	Dual	Through Hole	10 Ąin	Solder	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-060-540-604	Female	Copper Alloy	0.054 in	0.07 in	Gold	1	0.1 in	Green	60	Top Mount Opening Unthreaded	Single	Through Hole	10 Ąin	Wire Wrap	Non Specified Single Edge	-40 °C	105 °C	Cantilever	1 rows	Polyester Thermoplastic		0.156 in
