103308-3

Active

TE Connectivity AMP Connectors

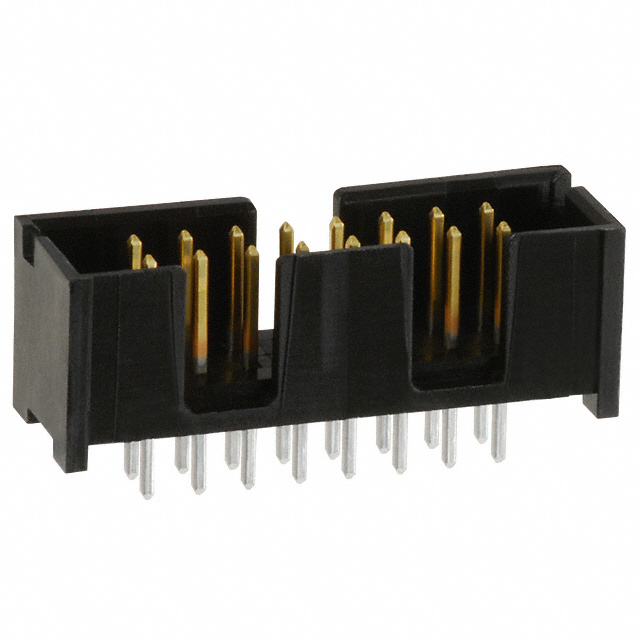

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

103308-3

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	103308-3	103308 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height [custom]	9.86 mm	9.86 mm
Insulation Height [custom]	0.388 in	0.388 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	20 - 34
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.83
		90	$ 2.48
		180	$ 2.28
		540	$ 2.06
		1080	$ 1.84
		5040	$ 1.63

103308 Series

CONN HEADER VERT 34POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Mounting Type	Contact Shape	Features	Style	Fastening Type	Contact Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Number of Positions
TE Connectivity AMP Connectors 103308-7	2.54 µm	100 µin	1 A	Tin-Lead	Brass	-65 ░C	105 ░C	34	UL94 V-0	2	15 µin	0.38 µm	0.1 in	2.54 mm	Shrouded - 4 Wall	9.86 mm	0.388 in	Through Hole	Square	Keying Slot	Board to Cable/Wire	Push-Pull	Male Pin	6.1 mm	0.24 in	0.12 in	3.05 mm	All	Header	Gold or Gold-Palladium	Solder	2.54 mm	0.1 in	Black
TE Connectivity AMP Connectors 103308-5	2.54 µm	100 µin	1 A	Tin-Lead	Brass	-65 ░C	105 ░C	20	UL94 V-0	2	15 µin	0.38 µm	0.1 in	2.54 mm	Shrouded - 4 Wall	9.86 mm	0.388 in	Through Hole	Square	Keying Slot	Board to Cable/Wire	Push-Pull	Male Pin	6.1 mm	0.24 in	0.12 in	3.05 mm	All	Header	Gold or Gold-Palladium	Solder	2.54 mm	0.1 in	Black
TE Connectivity AMP Connectors 103308-3	2.54 µm	100 µin	1 A	Tin-Lead	Brass	-65 ░C	105 ░C		UL94 V-0	2	15 µin	0.38 µm	0.1 in	2.54 mm	Shrouded - 4 Wall	9.86 mm	0.388 in	Through Hole	Square	Keying Slot	Board to Cable/Wire	Push-Pull	Male Pin	6.1 mm	0.24 in	0.12 in	3.05 mm	All	Header	Gold or Gold-Palladium	Solder	2.54 mm	0.1 in	Black	16

Description

General part information

103308 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)

Documents

Technical documentation and resources
