103308-5
ActiveTE Connectivity AMP Connectors

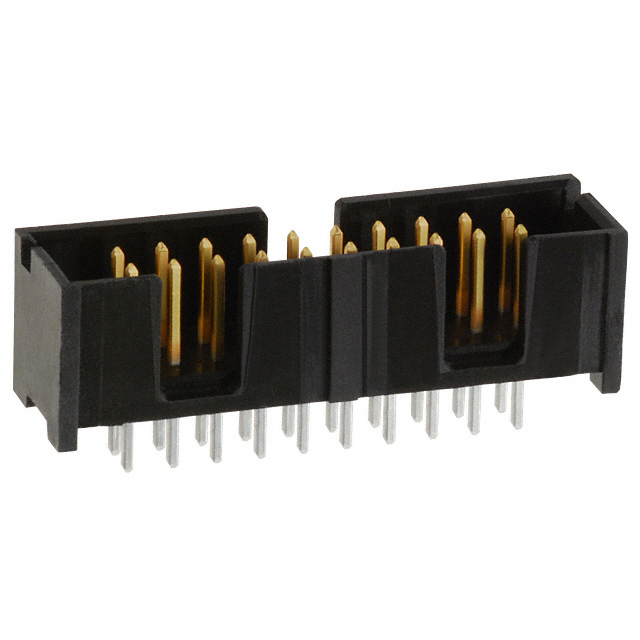

CONN HEADER VERT 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
103308-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103308-5 | 103308 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post [x] | 0.12 in | 0.12 in |
| Contact Length - Post [x] | 3.05 mm | 3.05 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1 A | 1 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height [custom] | 9.86 mm | 9.86 mm |
| Insulation Height [custom] | 0.388 in | 0.388 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 20 | 20 - 34 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.44 | |
| 75 | $ 1.71 | |||
| 150 | $ 1.62 | |||
| 525 | $ 1.46 | |||
| 1050 | $ 1.41 | |||
| 5025 | $ 1.49 | |||
103308 Series
CONN HEADER VERT 34POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Finish - Post | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Material Flammability Rating | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Height [custom] | Insulation Height [custom] | Mounting Type | Contact Shape | Features | Style | Fastening Type | Contact Type | Contact Length - Mating | Contact Length - Mating [x] | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Connector Type | Contact Finish - Mating | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103308-7 | 2.54 µm | 100 µin | 1 A | Tin-Lead | Brass | -65 ░C | 105 ░C | 34 | UL94 V-0 | 2 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | Shrouded - 4 Wall | 9.86 mm | 0.388 in | Through Hole | Square | Keying Slot | Board to Cable/Wire | Push-Pull | Male Pin | 6.1 mm | 0.24 in | 0.12 in | 3.05 mm | All | Header | Gold or Gold-Palladium | Solder | 2.54 mm | 0.1 in | Black | |
TE Connectivity AMP Connectors 103308-5 | 2.54 µm | 100 µin | 1 A | Tin-Lead | Brass | -65 ░C | 105 ░C | 20 | UL94 V-0 | 2 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | Shrouded - 4 Wall | 9.86 mm | 0.388 in | Through Hole | Square | Keying Slot | Board to Cable/Wire | Push-Pull | Male Pin | 6.1 mm | 0.24 in | 0.12 in | 3.05 mm | All | Header | Gold or Gold-Palladium | Solder | 2.54 mm | 0.1 in | Black | |
TE Connectivity AMP Connectors 103308-3 | 2.54 µm | 100 µin | 1 A | Tin-Lead | Brass | -65 ░C | 105 ░C | UL94 V-0 | 2 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | Shrouded - 4 Wall | 9.86 mm | 0.388 in | Through Hole | Square | Keying Slot | Board to Cable/Wire | Push-Pull | Male Pin | 6.1 mm | 0.24 in | 0.12 in | 3.05 mm | All | Header | Gold or Gold-Palladium | Solder | 2.54 mm | 0.1 in | Black | 16 |
Description
General part information
103308 Series
Connector Header Through Hole 20 position 0.100" (2.54mm)
