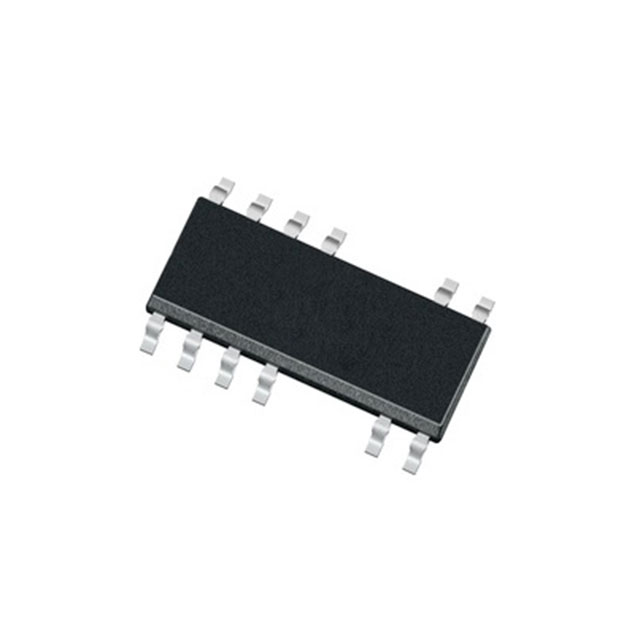

ICE2A0565GXUMA1

Obsolete

Infineon Technologies

IC OFFLINE SWITCH FLYBACK 12DSO

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC OFFLINE SWITCH FLYBACK 12DSO

Technical Specifications

Parameters and characteristics for this part

Specification	ICE2A0565GXUMA1

Control Features	Soft Start
Duty Cycle	72 %
Fault Protection	Over Load, Over Temperature, Current Limiting, Over Voltage, Open Loop
Frequency - Switching	100 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	3.9 mm
Package / Case	16-SOIC
Package / Case	0.154 in, 12
Power (Watts)	23 W
Supplier Device Package	PG-DSO-12-10
Topology	Flyback
Voltage - Breakdown	650 V
Voltage - Start Up	13.5 V
Voltage - Supply (Vcc/Vdd) [Max]	21 V
Voltage - Supply (Vcc/Vdd) [Min]	8.5 V

Part	Control Features	Supplier Device Package	Fault Protection	Duty Cycle	Voltage - Start Up	Power (Watts)	Package / Case	Package / Case	Package / Case	Voltage - Breakdown	Mounting Type	Frequency - Switching	Topology	Output Isolation	Internal Switch(s)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]
Infineon Technologies ICE2A0565ZHKLA1	Soft Start	PG-DIP-7-1	Current Limiting Open Loop Over Load Over Temperature Over Voltage	72 %	13.5 V	23 W	7.62 mm	0.3 in 7 Leads	8-DIP	650 V	Through Hole	100 kHz	Flyback	Isolated		150 °C	-40 °C	21 V	8.5 V
Infineon Technologies ICE2A0565GXUMA1	Soft Start	PG-DSO-12-10	Current Limiting Open Loop Over Load Over Temperature Over Voltage	72 %	13.5 V	23 W	3.9 mm	0.154 in 12	16-SOIC	650 V	Surface Mount	100 kHz	Flyback	Isolated		150 °C	-40 °C	21 V	8.5 V
