4121-D

Active

BRADY

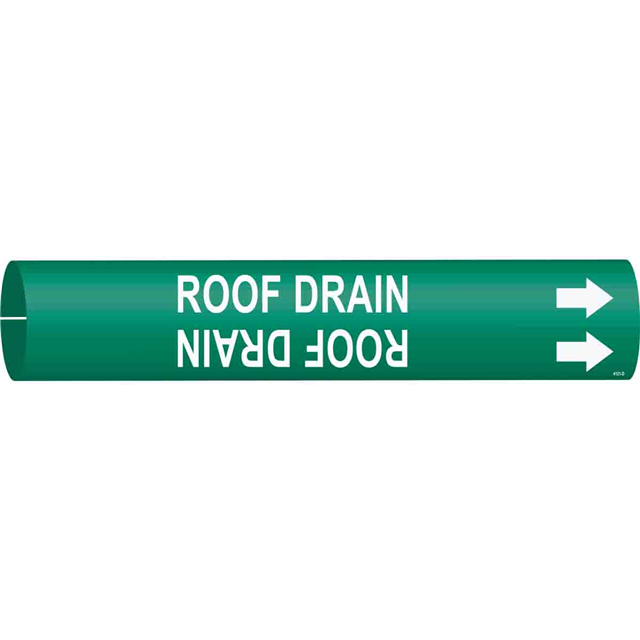

4121-D ROOF DRAIN/GRN/STY D

Search across all available documentation for this part.

Active

BRADY

4121-D ROOF DRAIN/GRN/STY D

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4121-D	4121 Series

Application Specifics	-	Notice
Applications	-	General
Arrangement	-	Symbol and Text
Color	White Legend, Green Background	White Legend, Green Background
Color - Background	-	Green
Color - Legend	-	White
Features	-	Chemical Resistant, Abrasion Resistant
Label Size	-	24 - 32 in
Label Size	-	10 in
Label Size	-	50.8 mm
Label Size	-	2 in
Label Size	-	330.2 mm
Label Size	-	13 in
Label Size [x]	533.4 mm	533.4 - 812.8 mm
Label Size [y]	71.4 mm, 2.81 in	2.81 - 254 mm
Label Type	Roof Drain	Roof Drain
Language	-	English
Legend (Symbol Only)	-	Directional Arrow
Legend (Text)	-	Roof Drain
Length	-	22.23 mm
Length	-	0.875 in
Location	-	Outdoor
Material	Plastic	Plastic
Material - Body	-	Plastic
Mounting Type	-	Snap On
Outside Pipe Diameter (Max)	-	1.5 "
Outside Pipe Diameter (Max)	-	38.1 mm
Outside Pipe Diameter (Min)	-	2.375 in
Outside Pipe Diameter (Min)	-	60.33 mm
Print Type	-	Pre-Printed
Shape	-	Square
Width	-	22.23 mm
Width	-	0.875 in

4121-G ROOF DRAIN/GRN/STY G

Part	Material	Label Type	Color	Label Size [x]	Label Size [y]	Label Size [y]	Label Size [x]	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Color - Legend	Width [y]	Width [y]	Legend (Symbol Only)	Arrangement	Length [x]	Length [x]	Location	Material - Body	Language	Legend (Text)	Applications	Mounting Type	Shape	Print Type	Color - Background	Features	Application Specifics	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]
BRADY 4121-G	Plastic	Roof Drain	White Legend, Green Background	24 in	254 mm	10 in	609.6 mm
BRADY 4121-H	Plastic	Roof Drain	White Legend, Green Background	32 in	254 mm	10 in	812.8 mm
BRADY 4121-B								2.375 in	60.33 mm	White	22.23 mm	0.875 in	Directional Arrow	Symbol and Text	22.23 mm	0.875 in	Outdoor	Plastic	English	Roof Drain	General	Snap On	Square	Pre-Printed	Green	Abrasion Resistant, Chemical Resistant	Notice	1.5 "	38.1 mm
BRADY 4121-D	Plastic	Roof Drain	White Legend, Green Background		2.81 in, 71.4 mm		533.4 mm
BRADY 4121-C	Plastic	Roof Drain	White Legend, Green Background																											50.8 mm	2 in	330.2 mm	13 in
BRADY 4121-F	Plastic	Roof Drain	White Legend, Green Background

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.18

General part information

4121-D ROOF DRAIN/GRN/STY D

Technical documentation and resources
