MSP-10-01
ActiveEssentra Access Solutions

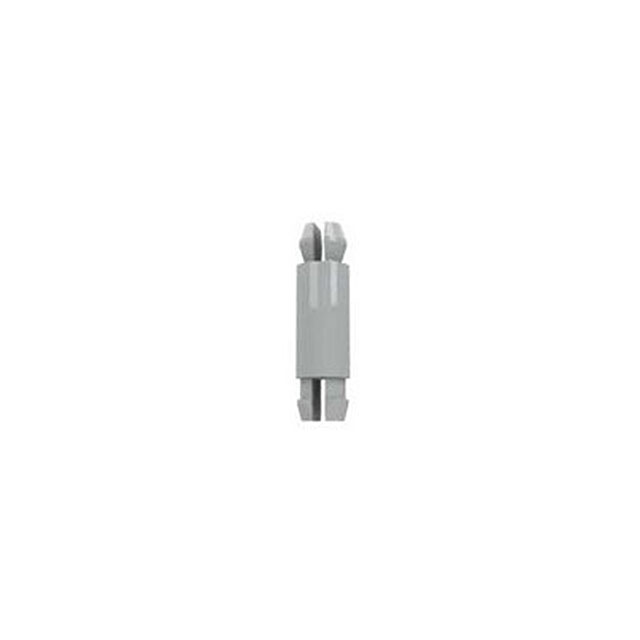

BRD SPT SNAP FIT/LOCK NYLON 5/8"
Deep-Dive with AI
Search across all available documentation for this part.
MSP-10-01
ActiveEssentra Access Solutions
BRD SPT SNAP FIT/LOCK NYLON 5/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSP-10-01 |
|---|---|
| Between Board Height | 15.88 mm |
| Between Board Height | 0.625 in |
| Between Board Height | 0.625 in |
| Holding Type | Snap Fit |
| Length - Overall [x] | 0.909 in |
| Length - Overall [x] | 23.1 mm |
| Material | Nylon |
| Mounting Panel Thickness | 0.062 in |
| Mounting Panel Thickness | 0.0625 in |
| Mounting Panel Thickness | 1.57 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.152 in |
| Support Hole Diameter [diameter] | 3.86 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.36 | |
| 5 | $ 0.31 | |||
| 10 | $ 0.26 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.18 | |||
Description
General part information
MSP-10 Series
Board Support Snap Fit / Snap Lock Nylon 0.625" (15.88mm) 5/8"
