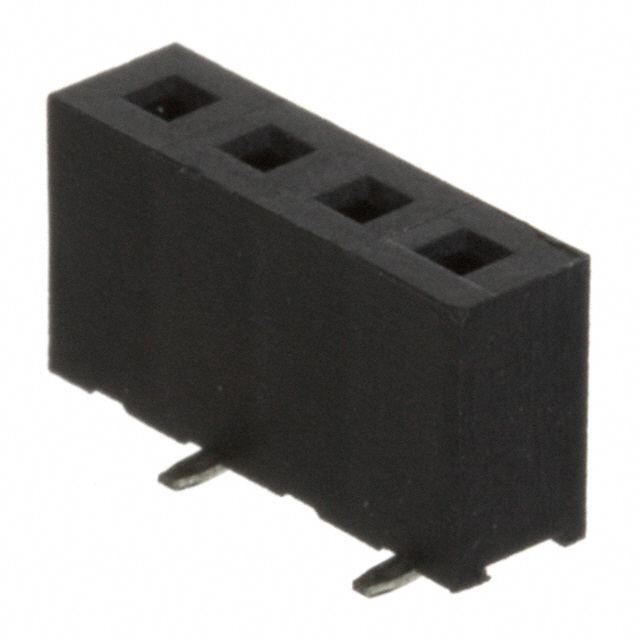

NPPN041BFLC-RC

Active

Sullins Connector Solutions

CONN HDR 4POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 4POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	NPPN041BFLC-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder
Voltage Rating	150 VDC

Part	Contact Finish - Post	Contact Type	Contact Finish Thickness - Post	Number of Positions Loaded	Fastening Type	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Contact Shape	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Number of Positions	Insulation Color	Insulation Height	Insulation Height	Insulation Material	Connector Type	Features
Sullins Connector Solutions NPPN041BFLD-RC	Gold	Female Socket	Flash	All	Push-Pull	Phosphor Bronze	Solder	-40 °C	105 ░C	Surface Mount	1	Square	150 VDC	2 A	Flash	UL94 V-0	0.079 in	2 mm	Gold	4	Black	4.6 mm	0.181 in	Nylon 6T Polyamide (PA6T)	Header
Sullins Connector Solutions NPPN041BFLD-M81RC	Gold	Female Socket	Flash	All	Push-Pull	Phosphor Bronze	Solder	-40 °C	105 ░C	Surface Mount	1	Square	150 VDC	2 A	Flash	UL94 V-0	0.079 in	2 mm	Gold	4	Black	4.6 mm	0.181 in	Nylon 6T Polyamide (PA6T)	Header	Pick and Place
Sullins Connector Solutions NPPN041BFLC-RC	Gold	Female Socket	Flash	All	Push-Pull	Phosphor Bronze	Solder	-40 °C	105 ░C	Surface Mount	1	Square	150 VDC	2 A	Flash	UL94 V-0	0.079 in	2 mm	Gold	4	Black	4.6 mm	0.181 in	Nylon 6T Polyamide (PA6T)	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Header Connector 0.079" (2.00mm) Surface Mount Gold
