FAD1-12032 Series

Part	Fan Type	Width	Static Pressure	Noise	Voltage - Rated	Power (Watts)	Air Flow	Approval Agency	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Termination Leads Count	Termination Type	Termination	Bearing Type	RPM	Weight	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Material - Frame	Material - Blade	Voltage Range (Min)	Voltage Range (Max)
Qualtek FAD1-12032EHJW12	Tubeaxial	32.3 mm	0.317 in H2O	48.4 dB	48 VDC	7.68 W	133.4 CFM	CE cURus TUV	120 mm	Square	120 mm	2 leads	Wire Leads	2 Wire Leads	Hydrodynamic	3200 RPM	0.469 lb	158 °F	14 °F	150 mA	Plastic	Plastic	43.2 VDC	52.8 VDC

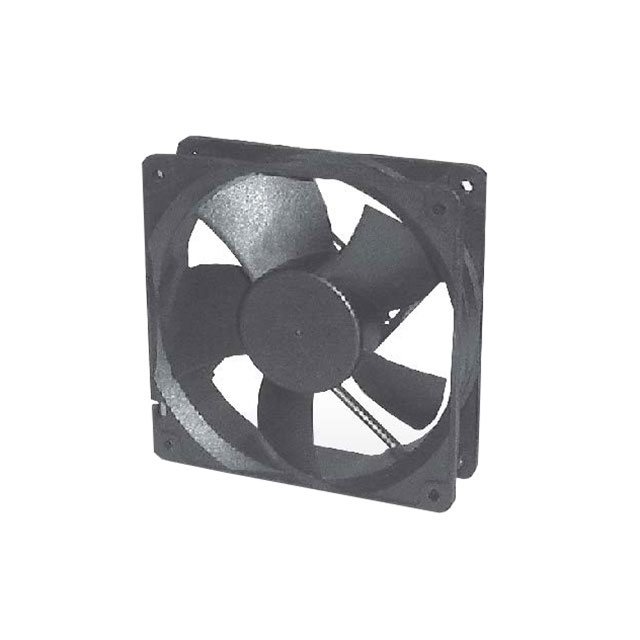

Qualtek FAD1-12032DBMW12	Tubeaxial	32.3 mm	0.167 in H2O	41.1 dB	24 VAC	3.84 W	99.1 CFM	CE cURus TUV	120 mm	Square	120 mm	2 leads	Wire Leads	2 Wire Leads	Ball	2400 RPM	0.469 lb	158 °F	14 °F	160 mA	Plastic	Plastic	21.6 VDC	26.4 VDC
Qualtek FAD1-12032EBHW12	Tubeaxial	32.3 mm	0.241 in H2O	43.3 dB	48 VDC	5.28 W	111.7 CFM	CE cURus TUV	120 mm	Square	120 mm	2 leads	Wire Leads	2 Wire Leads	Ball	2750 RPM	0.469 lb	158 °F	14 °F	110 mA	Plastic	Plastic	43.2 VDC	52.8 VDC
Qualtek FAD1-12032CHJW12	Tubeaxial	32.3 mm	0.317 in H2O	48.4 dB	12 VAC	6.12 W	133.4 CFM	CE cURus TUV	120 mm	Square	120 mm	2 leads	Wire Leads	2 Wire Leads	Hydrodynamic	3200 RPM	0.469 lb	158 °F	14 °F	0.51 A	Plastic	Plastic	10.8 VDC	13.2 VDC
