202-0038-01

Active

Schmartboard, Inc.

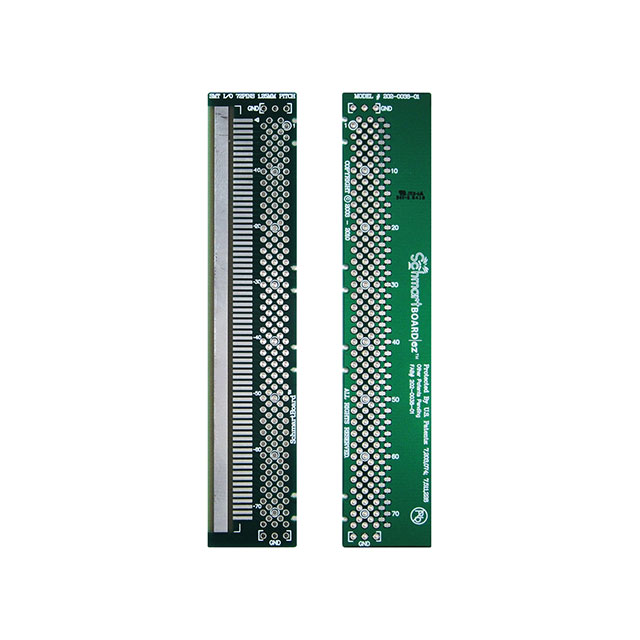

1.25MM PITCH MICROCONNECTOR ADAPTER WITH SCHMARTBOARD, EZ TECHNOLOGY

Search across all available documentation for this part.

Active

Schmartboard, Inc.

1.25MM PITCH MICROCONNECTOR ADAPTER WITH SCHMARTBOARD, EZ TECHNOLOGY

Technical Specifications

Parameters and characteristics for this part

1.25MM PITCH MICROCONNECTOR ADAPTER WITH SCHMARTBOARD, EZ TECHNOLOGY

Part	Proto Board Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Pitch [x]	Pitch	Pitch [x]	Circuit Pattern	Plating	Hole Diameter [diameter]	Hole Diameter [diameter]
Schmartboard, Inc. 202-0038-01	Breadboard, General Purpose	20.2 mm	3.99 in	101.4 mm	0.79 "	1.25 mm	Grid	0.049 in	Custom	Non-Plated Through Hole (NPTH)	0.97 mm	0.038 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.32
Digikey	Bag	1	$ 10.00

General part information

Breadboard, General Purpose Non-Plated Through Hole (NPTH) Custom 0.049" (1.25mm) Grid
