2-1103002-3
ActiveTE Connectivity AMP Connectors

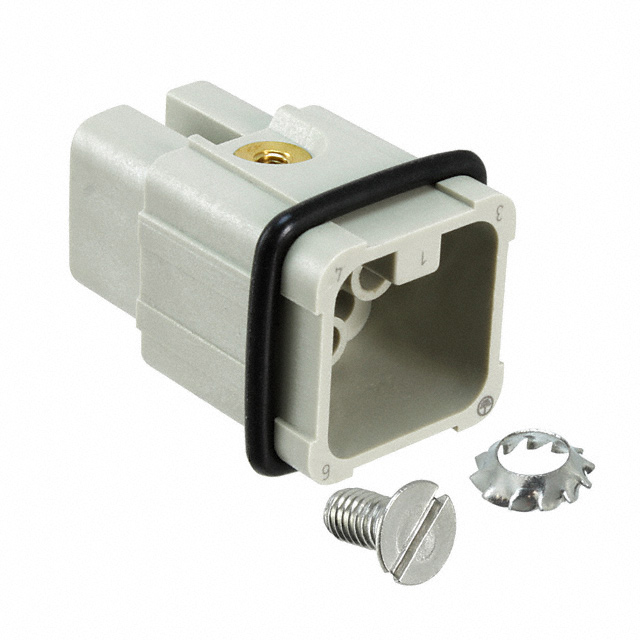

INSERT MALE 7POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1103002-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 7POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103002-3 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | HD.M |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 7+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 1 Gallon |
| Termination Style | Crimp |
| Voltage Rating | 42 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2080 | $ 9.64 | |
1103002 Series
INSERT MALE 7POS+1GND CRIMP
| Part | Current Rating (Amps) | Size | Contact Type | Voltage Rating | Material Flammability Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Gender | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103002-3 | 10 A | 1 Gallon | HD.M | 42 VDC | UL94 V-0 | 7+Ground | 125 °C | -40 °C | Crimp | Male | Insert without Contacts |
Description
General part information
1103002 Series
Male Insert without Contacts 7+Ground Position Crimp
