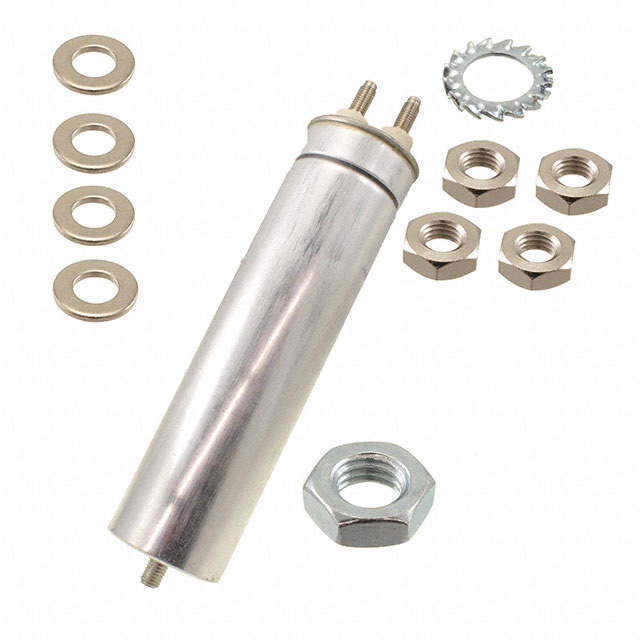

C44PMGR6100RASJ

Active

KEMET

CAP FILM 100UF 5% 1.1KVDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_F3117_C44P-R.pdf +1

C44PMGR6100RASJ

Active

KEMET

CAP FILM 100UF 5% 1.1KVDC RAD

Deep-Dive with AI

DocumentsDatasheet KEM_F3117_C44P-R.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C44PMGR6100RASJ

Applications	Power Factor Correction (PFC), Commutation, EMI, RFI Suppression
Capacitance	100 µF
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life
Height - Seated (Max) [Max]	6.26 "
Height - Seated (Max) [Max]	159 mm
Lead Spacing	35 mm
Lead Spacing	1.378 "
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	75 mm
Size / Dimension [diameter]	2.953 in
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	480 V
Voltage Rating - DC	1100 V
Voltage Rating - DC	1.1 kV

C44PMG Series

Part	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Applications	Dielectric Material	Voltage Rating - AC	Termination	Lead Spacing	Lead Spacing	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C44PMGR5600RASJ	60 µF	119 mm	4.685 in	Radial Can	1100 V	1.1 kV	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Metallized Polypropylene (PP)	480 V	Threaded Male	35 mm	1.378 "	Chassis Stud Mount	75 mm	2.953 in	Long Life	70 °C	-25 °C	5 %
KEMET C44PMGR5600RBSJ	60 µF			Radial Can	1100 V	1.1 kV	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Metallized Polypropylene (PP)	480 V	Threaded Male	28 mm	1.102 in	Chassis Stud Mount	65 mm	2.559 in	Long Life	70 °C	-25 °C	5 %	149 mm	5.866 in
KEMET C44PMGR6150RASK	150 µF	199 mm	7.835 "	Radial Can	1100 V	1.1 kV	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Metallized Polypropylene (PP)	480 V	Threaded Male	35 mm	1.378 "	Chassis Stud Mount	75 mm	2.953 in	Long Life	70 °C	-25 °C	10 %
KEMET C44PMGR6200RASK				Radial Can	1100 V	1.1 kV	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Metallized Polypropylene (PP)	480 V	Threaded Male	35 mm	1.378 "	Chassis Stud Mount	75 mm	2.953 in	Long Life	70 °C	-25 °C	10 %	249 mm	9.803 "
KEMET C44PMGR6166RASJ	166 µF	199 mm	7.835 "	Radial Can	1100 V	1.1 kV	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Metallized Polypropylene (PP)	480 V	Threaded Male	35 mm	1.378 "	Chassis Stud Mount	85 mm	3.346 "	Long Life	70 °C	-25 °C	5 %
KEMET C44PMGR6100RASJ	100 µF	159 mm	6.26 "	Radial Can	1100 V	1.1 kV	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Metallized Polypropylene (PP)	480 V	Threaded Male	35 mm	1.378 "	Chassis Stud Mount	75 mm	2.953 in	Long Life	70 °C	-25 °C	5 %
KEMET C44PMGR6250RASJ	250 µF			Radial Can	1100 V	1.1 kV	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Metallized Polypropylene (PP)	480 V	Threaded Male	35 mm	1.378 "	Chassis Stud Mount	85 mm	3.346 "	Long Life	70 °C	-25 °C	5 %	249 mm	9.803 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 91.91
		18	$ 86.21
		54	$ 82.40
		108	$ 79.87

Description

General part information

C44PMG Series

100 µF Film Capacitor 480V 1100V (1.1kV) Polypropylene (PP), Metallized Radial, Can

Documents

Technical documentation and resources

Datasheet

KEM_F3117_C44P-R.pdf

Datasheet

C44PMGR6100RASJ Spec Sheet

Datasheet
