BS14-C

Active

Panduit Corp

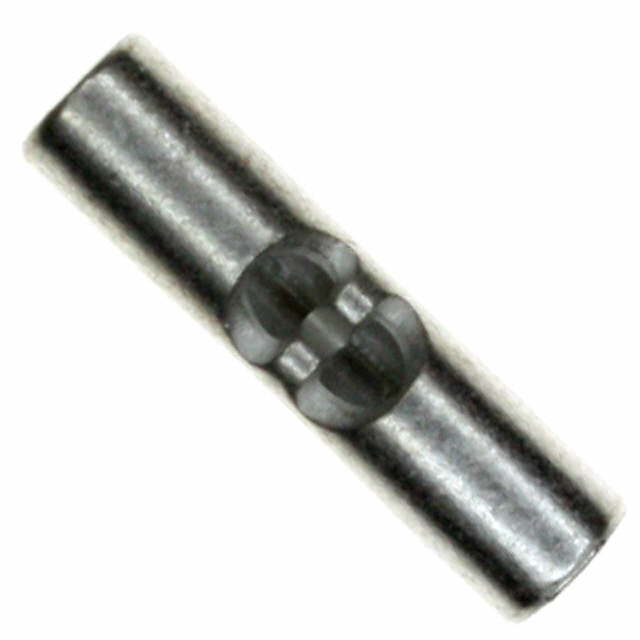

BUTT SPLICE, PAN-TERM SERIES, 16 AWG, 14 AWG, 2.5 MM², UNINSULATED

Search across all available documentation for this part.

Active

Panduit Corp

BUTT SPLICE, PAN-TERM SERIES, 16 AWG, 14 AWG, 2.5 MM², UNINSULATED

Technical Specifications

Parameters and characteristics for this part

Specification	BS14-C

Features	Serrated Mating Area, Brazed Seam
Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp

BUTT SPLICE, PAN-TERM SERIES, 16 AWG, 14 AWG, 2.5 MM², UNINSULATED

Part	Insulation	Terminal Type	Termination	Number of Wire Entries	Features
Panduit Corp BS14-C	Non-Insulated	Butt Splice, Individual Openings, Inline	Crimp	2	Brazed Seam, Serrated Mating Area

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 14-16 AWG
