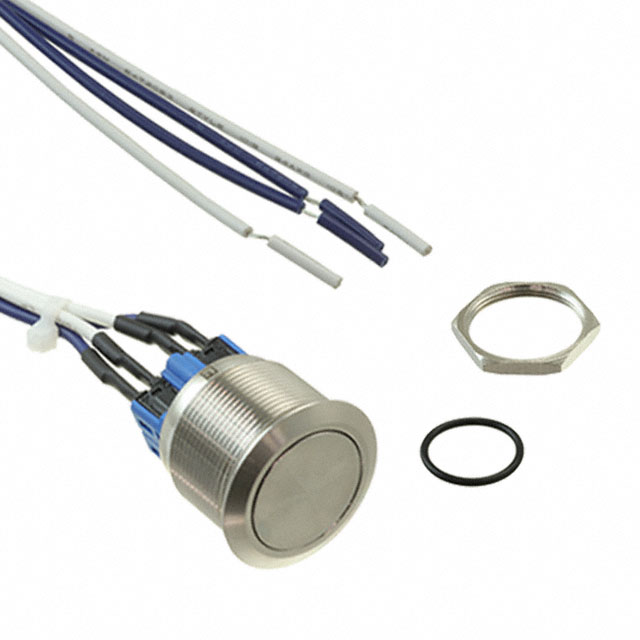

PV8FWY0SS

Active

E-Switch

SWITCH PB DPST-NO/NC 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB DPST-NO/NC 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV8FWY0SS

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Wire Leads
Type	Anti-Vandal
Voltage Rating - DC	48 V

Part	Electrical Life	Circuit	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Color - Actuator/Cap	Mounting Type	Current Rating (Amps)	Illumination Voltage (Nominal)	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Marking	Type	Termination Style	Switch Function	Mechanical Life	Actuator Type
E-Switch PV8FWY0SS-335	50000 Cycles	DPST-NO/NC	Green LED	55 °C	-20 C	48 V	Silver	Panel Mount Front	2 A	24 V	IP65 - Dust Tight Water Resistant	25 mm	No Marking	Anti-Vandal Illuminated	Wire Leads	Off-Mom On-Mom	1000000 Cycles	Button Flush Round
E-Switch PV8FWY0SS	50000 Cycles	DPST-NO/NC		55 °C	-20 C	48 V	Silver	Panel Mount Front	2 A		IP65 - Dust Tight Water Resistant	25 mm	No Marking	Anti-Vandal	Wire Leads	Off-Mom On-Mom	1000000 Cycles	Button Flush Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Anti-Vandal Panel Mount, Front
