3107A 0105000

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	3107A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.35 in
Jacket (Insulation) Diameter [diameter]	8.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Black
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Shield Type	Features	Shield Coverage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Material	Conductor Insulation	Wire Gauge	Shield Material
Belden Inc. 3107A 0105000	Copper Tinned	Braid Foil	Drain Wire	65 % 100 %	Multi-Pair	-20 C	60 °C	4	7	30 AWG	0.35 in	8.89 mm	300 V	1.346 mm	0.053 in	Black	Poly-Vinyl Chloride (PVC)	Foam High Density Polyethylene (FHDPE)	22 AWG	Aluminum Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.15
LCSC	Piece	1	$ 1.99

General part information

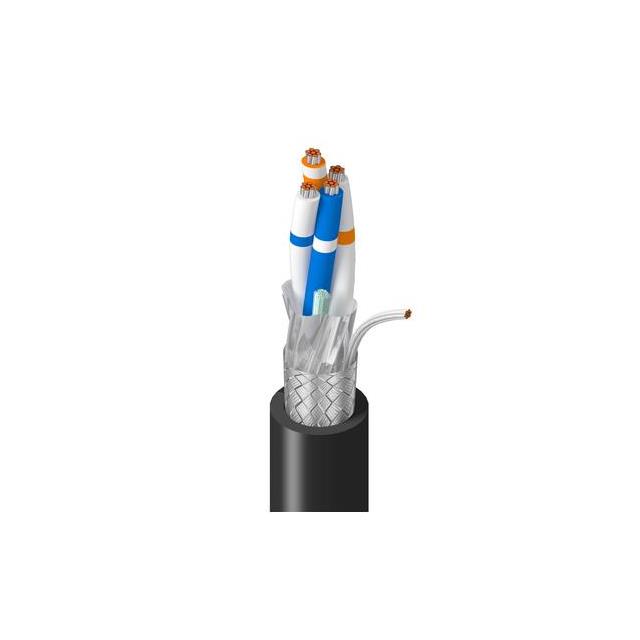

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 5000' (1524.0m)
