6282-6SG-321

Active

Conxall/Switchcraft

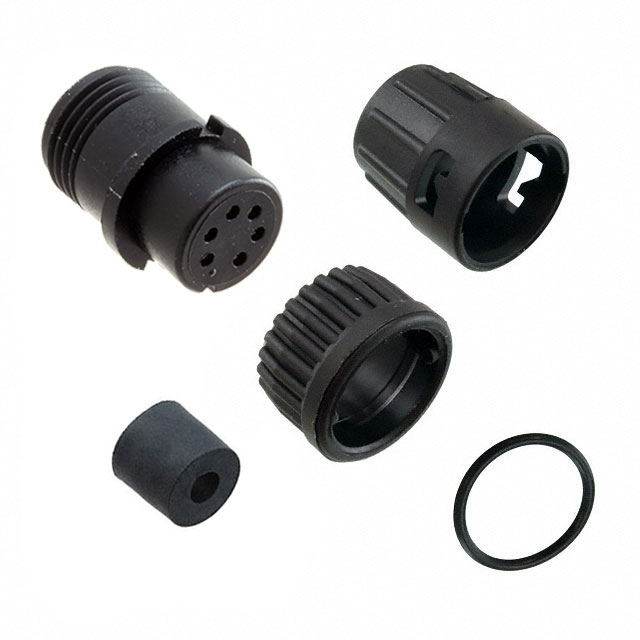

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-6SG-321

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.96

Description

General part information

6282-6SG Series

6 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6282-6SG-321	6282-6SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.21 - 0.25 in
Cable Opening [Min] [diameter]	5.33 mm	4.83 - 5.59 mm
Cable Opening [Min] [diameter]	0.21 in	0.19 - 0.22 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6282-6SG Series

CONN PLUG FMALE 6P GOLD SLDR CUP

Part	Current Rating (Amps)	Voltage Rating	Backshell Material, Plating	Primary Material	Contact Finish - Mating	Mounting Type	Contact Material	Shielding	Applications	Connector Type	Orientation	Number of Positions	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Fastening Type	Color	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6282-6SG-516	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell	0.16 in	0.18 in	4.06 mm	4.57 mm	Bayonet Lock	Black
Conxall/Switchcraft 6282-6SG-522	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell					Bayonet Lock	Black	6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6282-6SG-3DC	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell					Bayonet Lock	Black
Conxall/Switchcraft 6282-6SG-513	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell					Bayonet Lock	Black					0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 6282-6SG-311	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell					Bayonet Lock	Black							2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6282-6SG-321	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell					Bayonet Lock	Black		0.23 in	0.21 in	5.33 mm						5.84 mm
Conxall/Switchcraft 6282-6SG-519	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell					Bayonet Lock	Black	5.33 mm	0.21 in	0.19 in	4.83 mm
Conxall/Switchcraft 6282-6SG-315	Varies by Wire Gauge	600 V	Nylon, Polyamide (PA)	Plastic	Gold	Free Hanging (In-Line)	Brass	Unshielded	Automotive, Communication Systems, Instrumentation	Female Sockets, Plug	Keyed	6	Weathertight	-40 °C	115 °C	Backshell					Bayonet Lock	Black					0.15 in, 0.17 in	3.81 mm, 4.32 mm
