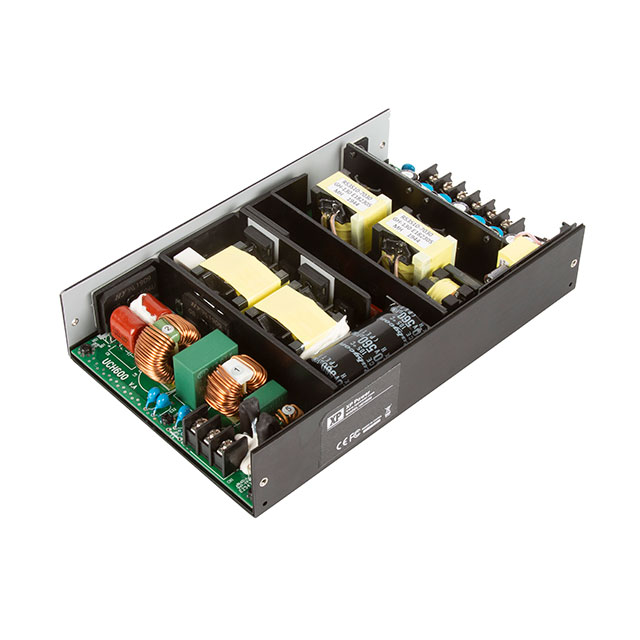

UCH600PS24
ActiveXP POWER
AC/DC CONVERTER 24V 600W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCH600PS24
ActiveXP POWER
AC/DC CONVERTER 24V 600W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCH600PS24 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, TUV, UL |
| Current - Output 1 | 25 A |
| Efficiency | 95 % |
| Features | PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 203.2 mm |
| Size / Dimension [x] | 8 " |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 40 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
UCH600 Series
| Part | Voltage - Isolation | Number of Outputs | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Minimum Load Required | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Current - Output 1 | Type | Approval Agency | Standard Number | Efficiency | Power (Watts) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XP POWER | 4000 V | 1 | ITE (Commercial) Medical | 90 VAC | 264 VAC | Chassis Mount | Adjustable Output PFC Remote On/Off Standby Output Universal Input | -20 °C | 70 °C | 24 V | 25 A | Open Frame | CB CE TUV UL | 62368-1 | 95 % | 600 W | 5 " | 127 mm | 203.2 mm | 8 " | 1.57 " | 40 mm | |
XP POWER | 4000 V | 1 | ITE (Commercial) Medical | 90 VAC | 264 VAC | Chassis Mount | Adjustable Output PFC Remote On/Off Standby Output Universal Input | -20 °C | 70 °C | 12 V | 50 A | Open Frame | CB CE TUV UL | 62368-1 | 93 % | 600 W | 5 " | 127 mm | 203.2 mm | 8 " | 1.57 " | 40 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 266.20 | |
| 5 | $ 258.21 | |||
| 10 | $ 250.23 | |||
| 25 | $ 239.58 | |||
| 100 | $ 223.61 | |||
Description
General part information
UCH600 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
