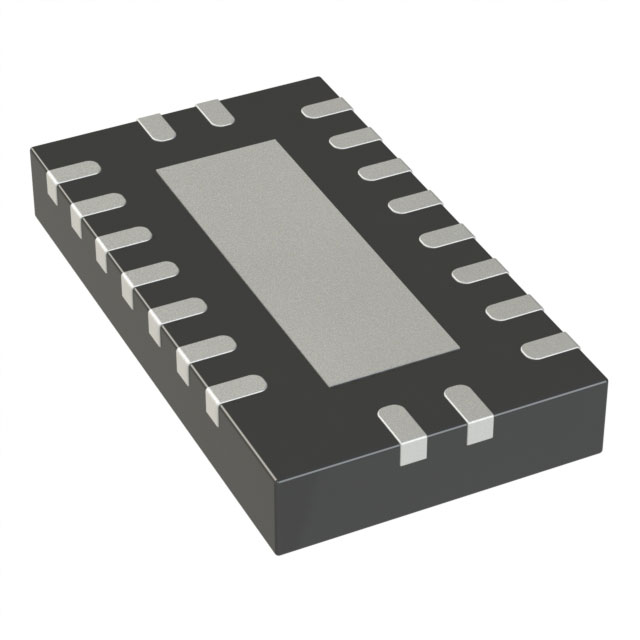

74HC244BQ,115
ActiveFreescale Semiconductor - NXP
IC BUF NON-INVERT 6V 20DHVQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74HC244BQ,115
ActiveFreescale Semiconductor - NXP
IC BUF NON-INVERT 6V 20DHVQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74HC244BQ,115 |
|---|---|
| Current - Output High, Low [custom] | 7.8 mA |
| Current - Output High, Low [custom] | 7.8 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-DHVQFN (4.5x2.5) |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.22 | ||
| 6000 | $ 0.20 | |||
| 15000 | $ 0.19 | |||
| 30000 | $ 0.18 | |||
Description
General part information
74HC244 Series
Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-DHVQFN (4.5x2.5)
