1ED3320MC12NXUMA1

Active

Infineon Technologies

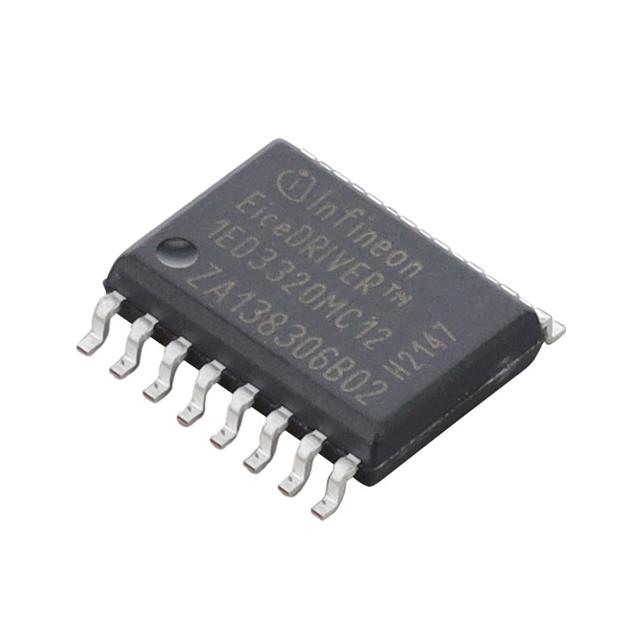

THE 1ED3320MC12N IS A 6 A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER (DSO-16 WIDE BODY PACKAGE)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1ED3320MC12NXUMA1

Active

Infineon Technologies

THE 1ED3320MC12N IS A 6 A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER (DSO-16 WIDE BODY PACKAGE)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1ED3320MC12NXUMA1	1ED332 Series

Approval Agency	UL	UL
Common Mode Transient Immunity (Min) [Min]	300 kV/µs	300 kV/µs
Current - Output High, Low	6 A, 3.3 A	3.3 - 8.5 A
Current - Peak Output	5 A	5 - 9 A
Mounting Type	Surface Mount	Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-SOIC	16-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	92 ns	92 ns
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	84 ns	84 ns
Rise / Fall Time (Typ) [custom]	15 ns	15 ns
Rise / Fall Time (Typ) [custom]	15 ns	15 ns
Supplier Device Package	PG-DSO-16-40	PG-DSO-16-40
Technology	Magnetic Coupling	Magnetic Coupling
Voltage - Isolation	5700 Vrms	5700 Vrms
Voltage - Output Supply	40 V	40 V

1ED332 Series

THE 1ED3320MC12N IS A 6 A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER (DSO-16 WIDE BODY PACKAGE)

Part	Voltage - Output Supply	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output High, Low	Voltage - Isolation	Package / Case	Package / Case [x]	Package / Case [y]	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Current - Peak Output	Approval Agency	Technology	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies 1ED3320MC12NXUMA1	40 V	Surface Mount	15 ns	15 ns	3.3 A, 6 A	5700 Vrms	16-SOIC	0.154 in	3.9 mm	300 kV/µs	PG-DSO-16-40	92 ns	84 ns	5 A	UL	Magnetic Coupling	1	-40 °C	125 °C
Infineon Technologies 1ED3321MC12NXUMA1	40 V	Surface Mount	15 ns	15 ns	6 A, 8.5 A	5700 Vrms	16-SOIC	0.154 in	3.9 mm	300 kV/µs	PG-DSO-16-40	92 ns	84 ns	9 A	UL	Magnetic Coupling	1	-40 °C	125 °C
Infineon Technologies 1ED3323MC12NXUMA1	40 V	Surface Mount	15 ns	15 ns	6 A, 8.5 A	5700 Vrms	16-SOIC	0.154 in	3.9 mm	300 kV/µs	PG-DSO-16-40	92 ns	84 ns	9 A	UL	Magnetic Coupling	1	-40 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.38
		10	$ 3.04
		25	$ 2.87
		100	$ 2.49
		250	$ 2.36
		500	$ 2.12
	Digi-Reel®	1	$ 3.38
		10	$ 3.04
		25	$ 2.87
		100	$ 2.49
		250	$ 2.36
		500	$ 2.12
	Tape & Reel (TR)	1000	$ 1.79
		2000	$ 1.70
		5000	$ 1.63
Newark	Each (Supplied on Cut Tape)	1	$ 3.23
		10	$ 2.28
		25	$ 2.20
		50	$ 2.13
		100	$ 2.06
		250	$ 1.94
		500	$ 1.91
		1000	$ 1.85

Description

General part information

1ED332 Series

EiceDRIVER™ Enhancedsingle-channelisolated gate driverwith +3.3 A / -6 A typical sourcing and sinking peak output current in a DSO-16 wide body package with 8 mm creepage forIGBTs,MOSFETsandSiC MOSFETs. 1ED3320MC12N belongs to the EiceDRIVER™ Enhanced 1ED332x family (F3 family). 1ED3320 offers short-circuit protection (DESAT) for IGBTs and SiC MOSFETs. The driver IC implements separate source / sink outputs, operates over a wide supply voltage range, either unipolar or bipolar and has tight part-to-part propagation delay matching.
