M12A08ML-12AMR-SD001

Active

Amphenol LTW

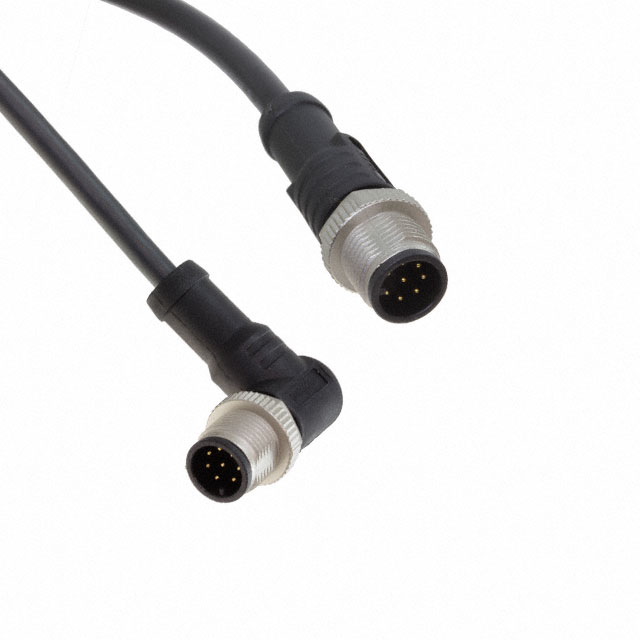

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 08 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-RIGHT ANGLE, SCREW THREAD,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A08ML-12AMR-SD001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 08 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-RIGHT ANGLE, SCREW THREAD,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A08ML-12AMR-SD001

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

M12A08ML Series

Part	1st Connector Mounting Type	Length [x]	Length [x]	Cable Material	Color	1st Connector Gender	2nd Connector Number of Positions	1st Connector Number of Positions	Shielding	1st Connector Number of Positions Loaded	2nd Connector Mounting Type	2nd Connector Number of Positions Loaded	1st Connector Orientation	1st Connector Shell Size - Insert	1st Connector Type	Usage	Ingress Protection	2nd Connector Type	2nd Connector Shell Size - Insert	Assembly Configuration	Cable Type	2nd Connector Gender
Amphenol LTW M12A08ML-12AML-SBA05	Free Hanging (In-Line)	1.64 ft	500 mm	Polyurethane (PUR)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Receptacle	M12	Standard	Round
Amphenol LTW M12A08ML-12AML-SDA05	Free Hanging (In-Line)	1.64 ft	500 mm	Polyvinyl Chloride (PVC)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Receptacle	M12	Standard	Round
Amphenol LTW M12A08ML-12AFL-SDA05	Free Hanging (In-Line)	1.64 ft	500 mm	Polyvinyl Chloride (PVC)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Plug	M12	Standard	Round	Female Sockets
Amphenol LTW M12A08ML-12AFL-SBA05	Free Hanging (In-Line)	1.64 ft	500 mm	Polyurethane (PUR)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Plug	M12	Standard	Round	Female Sockets
Amphenol LTW M12A08ML-12AML-SB001	Free Hanging (In-Line)	3.28 ft	1 m	Polyurethane (PUR)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Receptacle	M12	Standard	Round
Amphenol LTW M12A08ML-12AMR-SBA05	Free Hanging (In-Line)	1.64 ft	500 mm	Polyurethane (PUR)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle Right Angle	Industrial Environments	IP68 IP69K	Receptacle	M12	Standard	Round
Amphenol LTW M12A08ML-12AMR-SD001	Free Hanging (In-Line)	3.28 ft	1 m	Polyvinyl Chloride (PVC)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle Right Angle	Industrial Environments	IP68 IP69K	Receptacle	M12	Standard	Round
Amphenol LTW M12A08ML-12AFL-SB001	Free Hanging (In-Line)	3.28 ft	1 m	Polyurethane (PUR)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Plug	M12	Standard	Round	Female Sockets
Amphenol LTW M12A08ML-12AFR-SB001	Free Hanging (In-Line)	3.28 ft	1 m	Polyurethane (PUR)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Plug Right Angle	M12	Standard	Round	Female Sockets
Amphenol LTW M12A08ML-12AML-SD002	Free Hanging (In-Line)	6.56 ft	2 m	Polyvinyl Chloride (PVC)	Black	Male Pins	8	8 positions	Unshielded	All	Free Hanging (In-Line)	All	A	M12	Receptacle	Industrial Environments	IP68 IP69K	Receptacle	M12	Standard	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.95
Newark	Each	10	$ 17.73
		25	$ 16.27
		50	$ 14.53
		100	$ 13.37
		250	$ 12.98

Description

General part information

M12A08ML Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
