IRAUDAMP6

Active

Infineon Technologies

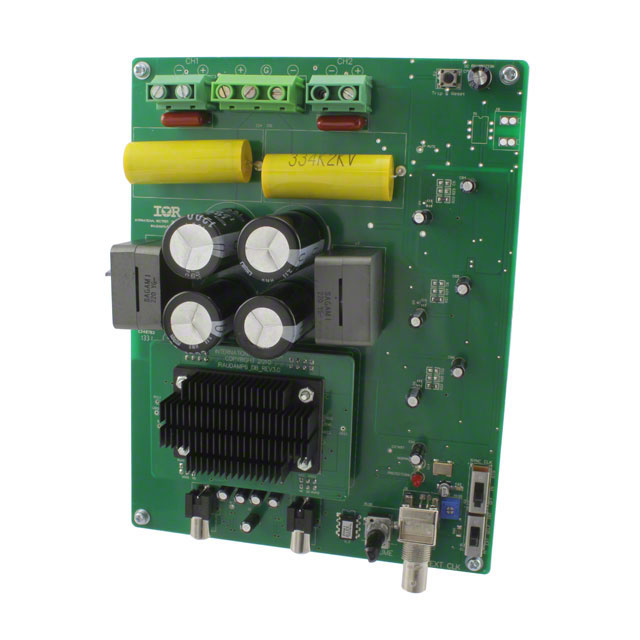

REFERENCE DESIGN BOARD - 250W/8OHM X 2 CHANNEL CLASS D AUDIO POWER AMPLIFIER FEATURING IRS10957 CONTROLLER IC

Search across all available documentation for this part.

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 250W/8OHM X 2 CHANNEL CLASS D AUDIO POWER AMPLIFIER FEATURING IRS10957 CONTROLLER IC

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP6

Board Type	Fully Populated
Max Output Power x Channels @ Load	410 W, 2
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	IRS20957S, IRF6785
Voltage - Supply [Max]	75 V
Voltage - Supply [Min]	-38 V

Part	Max Output Power x Channels @ Load	Voltage - Supply [Min]	Voltage - Supply [Max]	Utilized IC / Part	Board Type	Output Type	Supplied Contents
Infineon Technologies IRAUDAMP6	2 410 W	-38 V	75 V	IRF6785 IRS20957S	Fully Populated	2-Channel (Stereo)	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 342.49

General part information

IRF6785, IRS20957S - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board

Technical documentation and resources

No documents available
