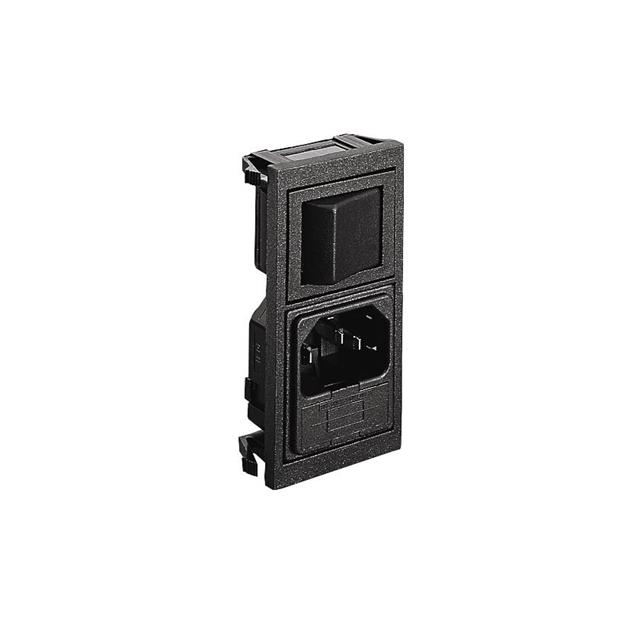

BZV15/Z0000/10

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	BZV15/Z0000/10

Accomodates a Fuse	True
Approval Agency	IMQ, UL, ENEC, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm
Panel Cutout Dimensions [y]	76.5 mm
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Material Flammability Rating	Connector Style	Mounting Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Fuse Holder, Drawer	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Current Rating - Appliance Inlet	Switch Features	Voltage Rating - Appliance Inlet	Approval Agency
BULGIN LIMITED BZV15/Z0000/11	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	3 mm	0.118 in	0.039 in	1 mm	Fuse Holder Twin Fused	Receptacle Male Blades - Module	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	10 A	Switch On-Off	250 VAC	CSA ENEC IMQ UL
BULGIN LIMITED BZV15/Z0000/70	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	3 mm	0.118 in	0.039 in	1 mm	Fuse Holder Twin Fused	Receptacle Male Blades - Module	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	10 A	Switch On-Off	250 VAC	CSA ENEC IMQ UL
BULGIN LIMITED BZV15/Z0000/10	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	3 mm	0.118 in	0.039 in	1 mm	Fuse Holder Twin Fused	Receptacle Male Blades - Module	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	10 A	Switch On-Off	250 VAC	CSA ENEC IMQ UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.66
Newark	Each	1	$ 21.89

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
