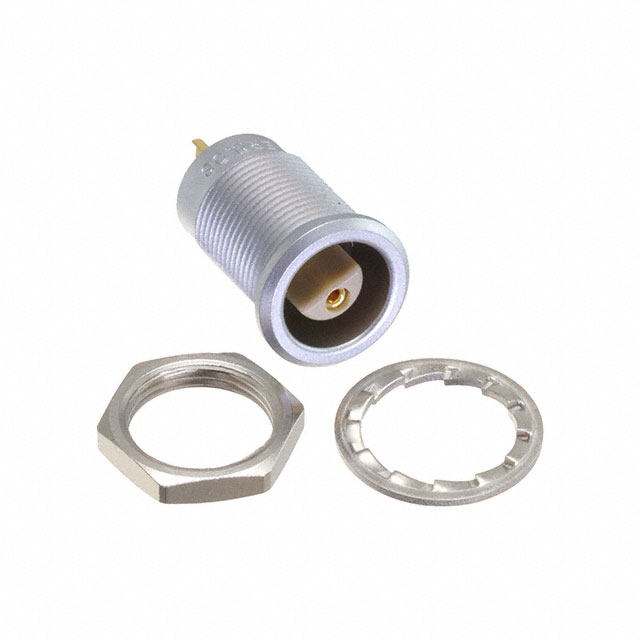

ECP.0S.302.CLL
ActiveLEMO
CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECP.0S.302.CLL
ActiveLEMO
CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ECP.0S.302.CLL | ECP Series |
|---|---|---|
| Applications | - | Military, Aerospace, Automotive, Aviation |
| Body Finish | - | Gold, Nickel |
| Body Material | - | Brass |
| Center Contact Material | - | Bronze |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver, Gray |
| Connector Style | - | Miniature Coaxial, NIM-CAMAC CD/N 549, Triaxial |
| Connector Type | Female Sockets, Male Pins, Receptacle | Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Female Socket |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | - | 59 Áin |
| Contact Finish Thickness - Mating | - | 1.5 Ám |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Contact Termination | - | Solder Cup |
| Current Rating (Amps) | 10 A | 5 - 20 A |
| Dielectric Material | - | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | - | Gold, Silver |
| Impedance | - | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector, 2 Nuts |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 1000 - 5000 |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut, Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount, Right Angle |
| Number of Ports | - | 1 |
| Number of Positions | 2 | 1 - 14 |
| Operating Temperature [Max] | 250 °C | 200 - 260 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed, P |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome, Nickel |
| Shell Material | Brass | Brass, Aluminum Alloy |
| Shell Size - Insert | 302 | 113 - 314 |
| Shield Termination | - | Solder |
| Shielding | Shielded | Shielded |
| Termination | - | Solder, Crimp |
| Voltage Rating | - | 300 - 700 VDC |
ECP Series
CONN CIRC RCPT 10POS GOLD SOLDER
| Part | Ingress Protection | Shell Material | Shielding | Mounting Feature | Termination | Contact Material | Material Flammability Rating | Mounting Type | Contact Finish - Mating | Insert Material | Color | Number of Positions | Fastening Type | Orientation | Connector Type | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Current Rating (Amps) | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Center Contact Material | Shield Termination | Includes | Impedance | Body Material | Body Finish | Connector Style | Center Contact Plating | Voltage Rating | Dielectric Material | Mating Cycles | Contact Termination | Housing Color | Number of Ports | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ECP.3S.310.CLN | IP50 | Brass | Shielded | Front and Rear Side Nut | Solder | Brass, Bronze | UL94 V-0 | Panel Mount, Through Hole | Gold | Polyetheretherketone (PEEK) | Silver | 10 | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 310 | 9 A | Metal | |||||||||||||||||
LEMO ECP.2C.314.CLN | IP50 | Brass | Front and Rear Side Nut | Solder | Bronze | Panel Mount, Through Hole | Gold | Polyetheretherketone (PEEK) | Silver | 14 | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 314 | 5 A | Metal | 59 Áin | 1.5 Ám | |||||||||||||||||
LEMO ECP.00.113.CTL | IP50 | Brass | Shielded | Front and Rear Side Nut | Bronze | UL94 V-0 | Gold | Polyetheretherketone (PEEK) | Silver | 1 | Push-Pull | P | Receptacle, Female Sockets | Chrome | -55 °C | 250 °C | 113 | 8 A | Metal | 59 Áin | 1.5 Ám | |||||||||||||||||
LEMO ECP.0S.302.CLL | IP50 | Brass | Shielded | Front and Rear Side Nut | Brass, Bronze | UL94 V-0 | Gold | Polyetheretherketone (PEEK) | Silver | 2 | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 302 | 10 A | Metal | |||||||||||||||||||
LEMO ECP.1S.304.CLL | IP50 | Brass | Shielded | Front and Rear Side Nut | Brass, Bronze | UL94 V-0 | Gold | Polyetheretherketone (PEEK) | Silver | 4 | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 304 | 10 A | Metal | |||||||||||||||||||
LEMO ECP.0S.303.CLN | IP50 | Brass | Shielded | Front and Rear Side Nut | Solder | Brass, Bronze | UL94 V-0 | Panel Mount, Through Hole | Gold | Polyetheretherketone (PEEK) | Silver | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 303 | 7 A | Metal | ||||||||||||||||||
LEMO ECP.1S.304.CLN | IP50 | Brass | Shielded | Front and Rear Side Nut | Solder | Brass, Bronze | UL94 V-0 | Panel Mount, Through Hole | Gold | Polyetheretherketone (PEEK) | Silver | 4 | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 304 | 10 A | Metal | |||||||||||||||||
LEMO ECP.1S.303.CLL | IP50 | Brass | Shielded | Front and Rear Side Nut | Brass, Bronze | UL94 V-0 | Gold | Polyetheretherketone (PEEK) | Silver | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 303 | 10 A | Metal | ||||||||||||||||||||
LEMO ECP.01.250.DLL | IP50 | Bulkhead - Front Side Nut | Push-Pull | Female Socket, Receptacle | -55 °C | 230 °C | Bronze | Solder | 1 Connector, 1 Nut | 50 Ohms | Brass | Gold | Miniature Coaxial | Gold | 300 VDC | Polyetheretherketone (PEEK) | 1000 | Solder Cup | Gold | |||||||||||||||||||
LEMO ECP.0S.304.CLN | IP50 | Brass | Shielded | Front and Rear Side Nut | Solder | Brass, Bronze | UL94 V-0 | Panel Mount, Through Hole | Gold | Polyetheretherketone (PEEK) | Silver | 4 | Push-Pull | Keyed | Female Sockets, Male Pins, Receptacle | Chrome | -55 °C | 250 °C | 304 | 7 A | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.00 | |
| 10 | $ 14.28 | |||
Description
General part information
ECP Series
2 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
