ECP.1S.304.CLL

Active

LEMO

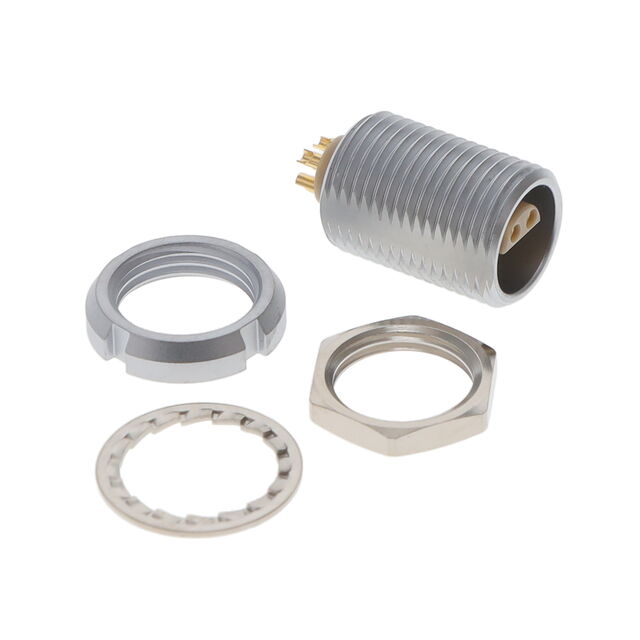

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECP.1S.304.CLL

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.59
		10	$ 30.29
		25	$ 28.98
		50	$ 28.04
		100	$ 27.11
		250	$ 25.61

Description

General part information

ECP Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECP.1S.304.CLL	ECP Series

Applications	-	Military, Aerospace, Automotive, Aviation
Body Finish	-	Gold, Nickel
Body Material	-	Brass
Center Contact Material	-	Bronze
Center Contact Plating	-	Gold
Color	Silver	Silver, Gray
Connector Style	-	Miniature Coaxial, NIM-CAMAC CD/N 549, Triaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	10 A	5 - 20 A
Dielectric Material	-	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Gold, Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 2 Nuts
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000 - 5000
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut, Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Ports	-	1
Number of Positions	4	1 - 14
Operating Temperature [Max]	250 °C	200 - 260 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed, P
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Brass	Brass, Aluminum Alloy
Shell Size - Insert	304	113 - 314
Shield Termination	-	Solder
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp
Voltage Rating	-	300 - 700 VDC

ECP Series

CONN CIRC RCPT 10POS GOLD SOLDER

Part	Ingress Protection	Shell Material	Shielding	Mounting Feature	Termination	Contact Material	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Insert Material	Color	Number of Positions	Fastening Type	Orientation	Connector Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Current Rating (Amps)	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Center Contact Material	Shield Termination	Includes	Impedance	Body Material	Body Finish	Connector Style	Center Contact Plating	Voltage Rating	Dielectric Material	Mating Cycles	Contact Termination	Housing Color
LEMO ECP.3S.310.CLN	IP50	Brass	Shielded	Front and Rear Side Nut	Solder	Brass, Bronze	UL94 V-0	Panel Mount, Through Hole	Gold	Polyetheretherketone (PEEK)	Silver	10	Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	310	9 A	Metal
LEMO ECP.2C.314.CLN	IP50	Brass		Front and Rear Side Nut	Solder	Bronze		Panel Mount, Through Hole	Gold	Polyetheretherketone (PEEK)	Silver	14	Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	314	5 A	Metal	59 Áin	1.5 Ám
LEMO ECP.00.113.CTL	IP50	Brass	Shielded	Front and Rear Side Nut		Bronze	UL94 V-0		Gold	Polyetheretherketone (PEEK)	Silver	1	Push-Pull	P	Receptacle, Female Sockets	Chrome	-55 °C	250 °C	113	8 A	Metal	59 Áin	1.5 Ám
LEMO ECP.0S.302.CLL	IP50	Brass	Shielded	Front and Rear Side Nut		Brass, Bronze	UL94 V-0		Gold	Polyetheretherketone (PEEK)	Silver	2	Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	302	10 A	Metal
LEMO ECP.1S.304.CLL	IP50	Brass	Shielded	Front and Rear Side Nut		Brass, Bronze	UL94 V-0		Gold	Polyetheretherketone (PEEK)	Silver	4	Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	304	10 A	Metal
LEMO ECP.0S.303.CLN	IP50	Brass	Shielded	Front and Rear Side Nut	Solder	Brass, Bronze	UL94 V-0	Panel Mount, Through Hole	Gold	Polyetheretherketone (PEEK)	Silver		Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	303	7 A	Metal
LEMO ECP.1S.304.CLN	IP50	Brass	Shielded	Front and Rear Side Nut	Solder	Brass, Bronze	UL94 V-0	Panel Mount, Through Hole	Gold	Polyetheretherketone (PEEK)	Silver	4	Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	304	10 A	Metal
LEMO ECP.1S.303.CLL	IP50	Brass	Shielded	Front and Rear Side Nut		Brass, Bronze	UL94 V-0		Gold	Polyetheretherketone (PEEK)	Silver		Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	303	10 A	Metal
LEMO ECP.01.250.DLL	IP50			Bulkhead - Front Side Nut									Push-Pull		Female Socket, Receptacle		-55 °C	230 °C						Bronze	Solder	1 Connector, 1 Nut	50 Ohms	Brass	Gold	Miniature Coaxial	Gold	300 VDC	Polyetheretherketone (PEEK)	1000	Solder Cup	Gold
LEMO ECP.0S.304.CLN	IP50	Brass	Shielded	Front and Rear Side Nut	Solder	Brass, Bronze	UL94 V-0	Panel Mount, Through Hole	Gold	Polyetheretherketone (PEEK)	Silver	4	Push-Pull	Keyed	Female Sockets, Male Pins, Receptacle	Chrome	-55 °C	250 °C	304	7 A	Metal
