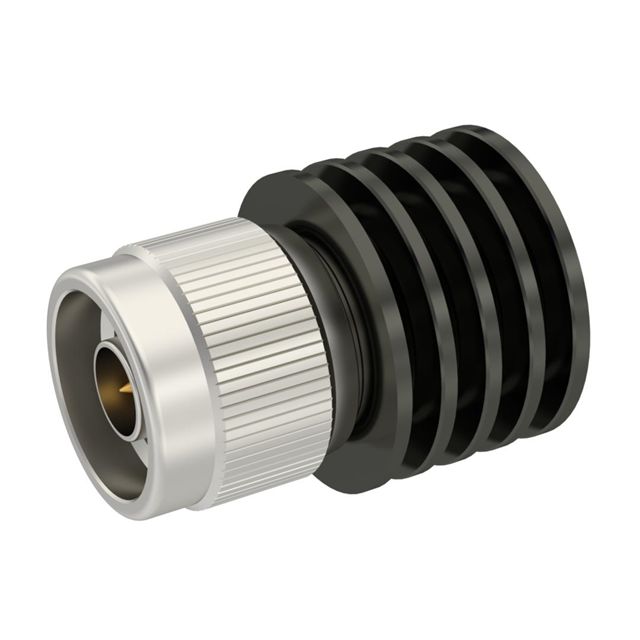

R404507000

Active

Radiall USA, Inc.

RF/MICROWAVE TERMINATION, 0MHZ MIN, 2000MHZ MAX, 50OHM

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF/MICROWAVE TERMINATION, 0MHZ MIN, 2000MHZ MAX, 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	R404507000

Body Finish	Nickel
Body Material	Brass
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Contact Finish	Dielectric Material	Mounting Type	Body Material	Body Finish	Contact Material	Connector Style	Impedance	Connector Type	Frequency - Max [Max]
Radiall USA, Inc. R404507000	Gold	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Brass	Nickel	Brass	N Type	50 Ohms	Male Pin Plug	2 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 121.34

General part information

Terminator Coax Connector Plug, Male Pin N Type 50 Ohms

Technical documentation and resources

No documents available
