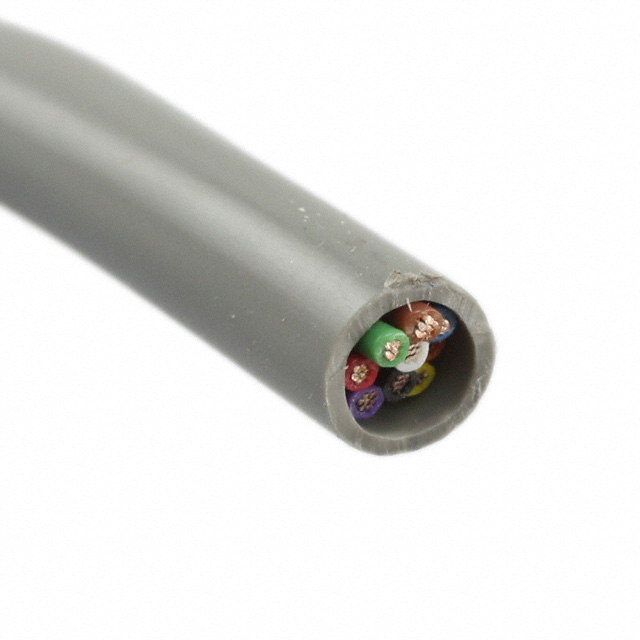

C4070A.41.10
ActivePrysmian Group
CABLE 9COND 22AWG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
C4070A.41.10
ActivePrysmian Group
CABLE 9COND 22AWG GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C4070A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.249 in |
| Jacket (Insulation) Diameter [diameter] | 6.32 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 9 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.87 | |
| 2000 | $ 0.83 | |||
| 3000 | $ 0.80 | |||
| 5000 | $ 0.77 | |||
| 7000 | $ 0.75 | |||
| 10000 | $ 0.73 | |||
Description
General part information
C4070 Series
9 Conductor Multi-Conductor Cable Gray 22 AWG 1000.0' (304.8m)
