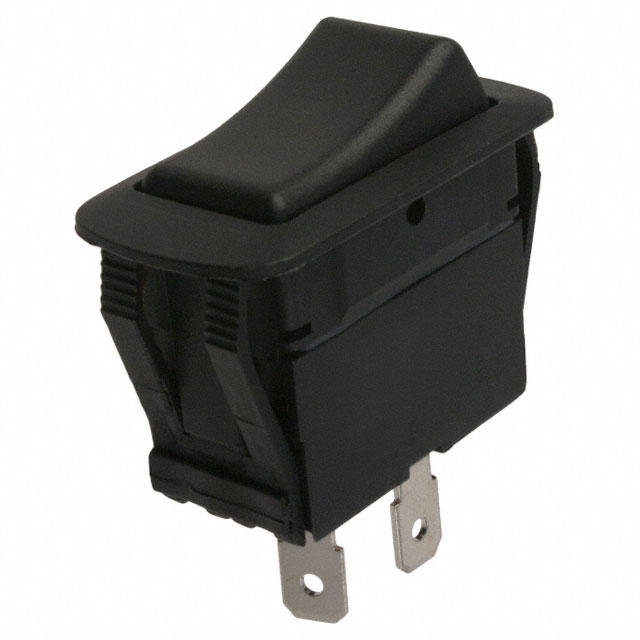

GRB260N601BBNN

Active

CW Industries

SWITCH ROCKER SPST-NO 20A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPST-NO 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB260N601BBNN

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	ENEC, cULus
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A, 20 A
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Termination Style	Voltage Rating - DC	Actuator Marking	Circuit	Mounting Type	Switch Function	Ingress Protection	Approval Agency	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Mechanical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)
CW Industries GRB260N101BBNN	Quick Connect - 0.250" (6.3mm)	14 V	No Marking	SPST-NO	Panel Mount Snap-In	Off-Mom	IP56 - Dust Protected Water Resistant	cULus ENEC	Concave (Curved)	21.2 mm	36.6 mm	Black	100000 Cycles	125 V	85 °C	-20 C	20 A 21 A
CW Industries GRB260N601BBNN	Quick Connect - 0.250" (6.3mm)	14 V	No Marking	SPST-NO	Panel Mount Snap-In	Off-Mom	IP56 - Dust Protected Water Resistant	cULus ENEC	Concave (Curved)	21.2 mm	36.6 mm	Black	100000 Cycles	125 V	85 °C	-20 C	20 A 21 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.93

General part information

Rocker Switch SPST-NO 20A (AC), 21A (DC) 125 V Panel Mount, Snap-In
