325-062-520-201

Active

EDAC Inc.

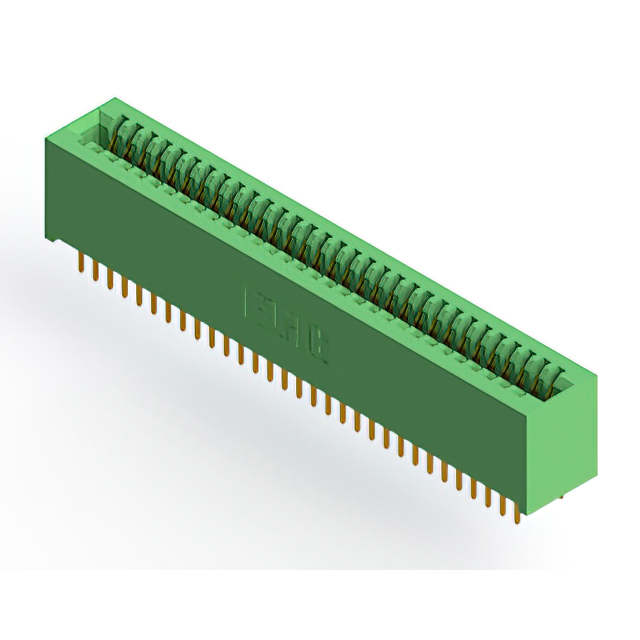

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 62 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-062-520-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 62 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-062-520-201

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	62
Number of Positions/Bay/Row [custom]	31
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

325-062 Series

Part	Number of Rows	Contact Finish	Contact Type	Color	Termination Rows	Card Thickness	Card Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Material - Insulation	Contact Material	Gender	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Positions
EDAC Inc. 325-062-520-209	2	Gold	Cantilever	Green	2	3.18 mm	0.125 in	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Solder	Diallyl Phthalate (DAP)	Copper Alloy	Female	31	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	125 °C	-65 ░C	2.54 mm	0.1 in	62
EDAC Inc. 325-062-500-208	2	Gold	Cantilever	Green	2	3.18 mm	0.125 in		4-40 Flush Mount Threaded Insert Top Opening		Solder Eyelet(s)	Diallyl Phthalate (DAP)	Copper Alloy	Female	31	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	125 °C	-65 ░C	2.54 mm	0.1 in	62
EDAC Inc. 325-062-520-201	2	Gold	Cantilever	Green	2	3.18 mm	0.125 in				Solder	Diallyl Phthalate (DAP)	Copper Alloy	Female	31	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	125 °C	-65 ░C	2.54 mm	0.1 in	62
EDAC Inc. 325-062-500-207	2	Gold	Cantilever	Green	2	3.18 mm	0.125 in		Flush Mount M3 Threaded Insert Top Opening		Solder Eyelet(s)	Diallyl Phthalate (DAP)	Copper Alloy	Female	31	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	125 °C	-65 ░C	2.54 mm	0.1 in	62
EDAC Inc. 325-062-500-201	2	Gold	Cantilever	Green	2	3.18 mm	0.125 in				Solder Eyelet(s)	Diallyl Phthalate (DAP)	Copper Alloy	Female	31	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	125 °C	-65 ░C	2.54 mm	0.1 in	62
EDAC Inc. 325-062-540-209	2	Gold	Cantilever	Green	2	3.18 mm	0.125 in	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Wire Wrap	Diallyl Phthalate (DAP)	Copper Alloy	Female	31	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	125 °C	-65 ░C	2.54 mm	0.1 in	62

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.09
Newark	Each	1	$ 14.15
		100	$ 10.35
		250	$ 8.27
		500	$ 7.02
		1000	$ 5.30

Description

General part information

325-062 Series

62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
