MS3101E14S-5S

Active

ITT Cannon, LLC

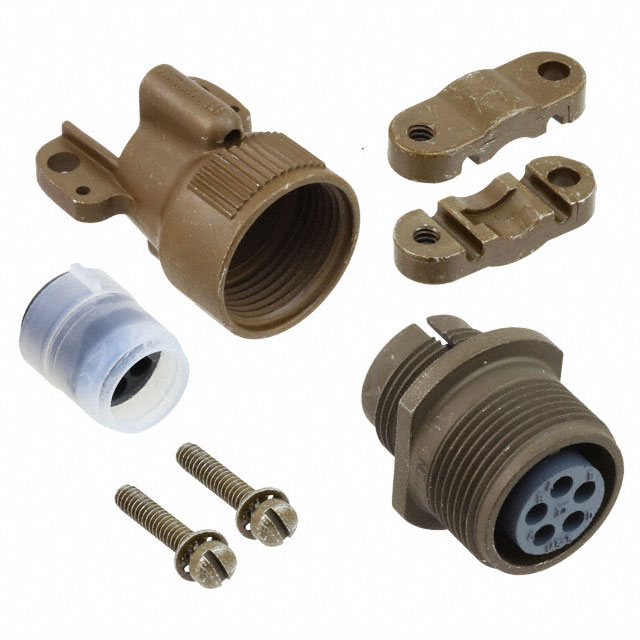

CONN RCPT FMALE 5P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

MS3101E14S-5S

Active

ITT Cannon, LLC

CONN RCPT FMALE 5P SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3101E14S-5S

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-5
Voltage Rating	250 VDC, 200 VAC

MS3101E14 Series

Part	Color	Current Rating (Amps)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shell Size - Insert	Grade	Ingress Protection	Primary Material	Shell Material	Connector Type	Features	Qualification	Shell Finish	Orientation	Mounting Type	Contact Finish - Mating	Shielding	Contact Material	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Applications
ITT Cannon, LLC MS3101E14S-2P	Olive Drab	22 A	4	-55 °C	125 °C	200 VAC 250 VDC	14S-2	Military	Environment Resistant	Metal	Aluminum Alloy	Male Pins Receptacle	Cable Clamp	MIL-DTL-5015	Olive Drab Cadmium	N	Free Hanging (In-Line)	Silver
ITT Cannon, LLC MS3101E14S-6S	Olive Drab	22 A	6	-55 °C	125 °C	200 VAC 250 VDC	14S-6	Military	Environment Resistant	Metal	Aluminum Alloy	Receptacle Female Sockets	Cable Clamp	MIL-DTL-5015	Olive Drab Cadmium	N	Free Hanging (In-Line)	Silver
ITT Cannon, LLC MS3101E14S9SX	Olive Drab		2	-55 °C	125 °C		14S-9	Military	Environment Resistant	Metal	Aluminum Alloy	Receptacle Female Sockets		MIL-DTL-5015	Olive Drab Cadmium	X	Free Hanging (In-Line)	Silver	Unshielded	Copper Alloy	Plastic	10.3 mm	0.406 in	Aviation Industrial Marine Military
ITT Cannon, LLC MS3101E14S-5S	Olive Drab	22 A		-55 °C	125 °C	200 VAC 250 VDC	14S-5	Military	Environment Resistant	Metal	Aluminum Alloy	Receptacle Female Sockets	Cable Clamp	MIL-DTL-5015	Olive Drab Cadmium	N	Free Hanging (In-Line)	Silver
ITT Cannon, LLC MS3101E14S-9P	Olive Drab	22 A	2	-55 °C	125 °C	500 VAC 700 VDC	14S-9	Military	Environment Resistant	Metal	Aluminum Alloy	Male Pins Receptacle	Cable Clamp	MIL-DTL-5015	Olive Drab Cadmium	N	Free Hanging (In-Line)	Silver
ITT Cannon, LLC MS3101E14S6P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.72
		10	$ 64.90
		25	$ 62.40
		50	$ 60.32
		100	$ 56.99

Description

General part information

MS3101E14 Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available
