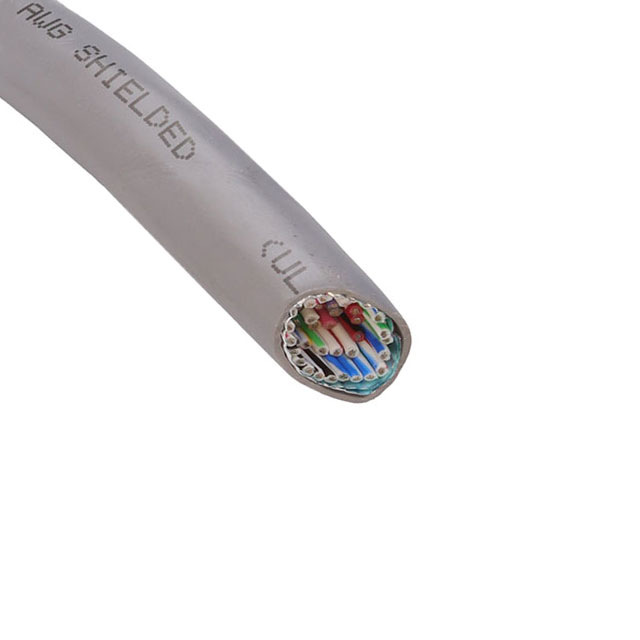

1219/50C SL001

Active

ALPHA WIRE

CABLE 50COND 24AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 50COND 24AWG SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1219/50C SL001	1219/50C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	10.85 mm	10.85 mm
Jacket (Insulation) Diameter [diameter]	0.427 in	0.427 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	50	50
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 50COND 24AWG SHLD

Part	Conductor Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Conductor Insulation	Features	Length	Length	Usage	Shield Material	Jacket (Insulation) Material	Shield Type	Voltage	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 1219/50C SL001	Copper, Tinned	50	10.85 mm	0.427 in	24 AWG	-20 C	80 C	Multi-Conductor	32 AWG	7	100 %	Poly-Vinyl Chloride (PVC)	Drain Wire	1000 ft	304.8 m	Communication, Control	Aluminum	Poly-Vinyl Chloride (PVC)	Foil	300 V	Slate
ALPHA WIRE 1219/50C SL005	Copper, Tinned	50	10.85 mm	0.427 in	24 AWG	-20 C	80 C	Multi-Conductor	32 AWG	7	100 %	Poly-Vinyl Chloride (PVC)	Drain Wire			Communication, Control	Aluminum	Poly-Vinyl Chloride (PVC)	Foil	300 V	Slate	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 9.90

General part information

50 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
