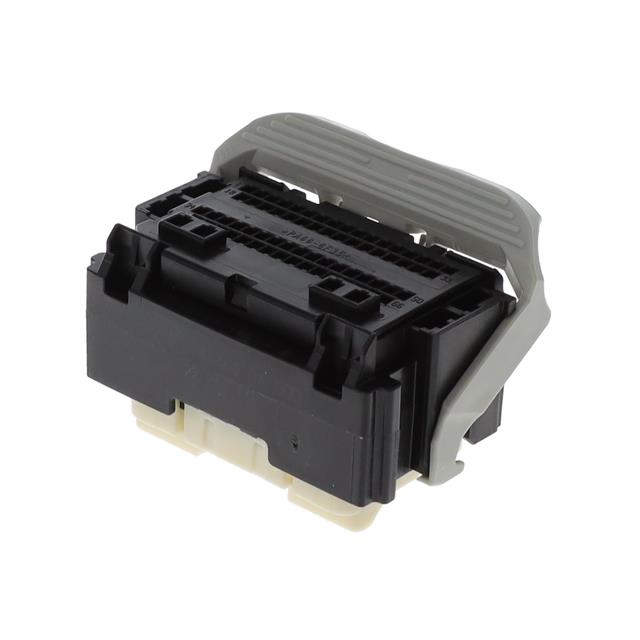

1438136-1

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE CONNECTOR HOUSING, RECEPTACLE, 70 POSITIONS, AMP AUTOMOTIVE SOCKET CONTACTS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE CONNECTOR HOUSING, RECEPTACLE, 70 POSITIONS, AMP AUTOMOTIVE SOCKET CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	1438136-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Lever Lock
Features	IP67
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	70
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

Part	Insulation Material	Color	Features	Note	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Mounting Type	Fastening Type	Number of Positions
TE Connectivity Raychem Cable Protection 1438136-1	Glass Filled Nylon Polyamide (PA)	Black	IP67	Contacts Not Included	Crimp	125 °C	-40 °C	Receptacle	Female Socket	Free Hanging (In-Line)	Lever Lock	70
TE Connectivity Raychem Cable Protection 3-1438136-4			IP67		Crimp	125 °C	-40 °C	Receptacle	Female Socket	Free Hanging (In-Line)	Lever Lock	70
TE Connectivity Raychem Cable Protection 2-1438136-4		Black		Contacts Not Included	Crimp			Female Sockets Insert	Female Socket	Free Hanging (In-Line)	Lever Lock	70

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AUTOMOTIVE CONNECTOR HOUSING, RECEPTACLE, 70 POSITIONS, AMP AUTOMOTIVE SOCKET CONTACTS
