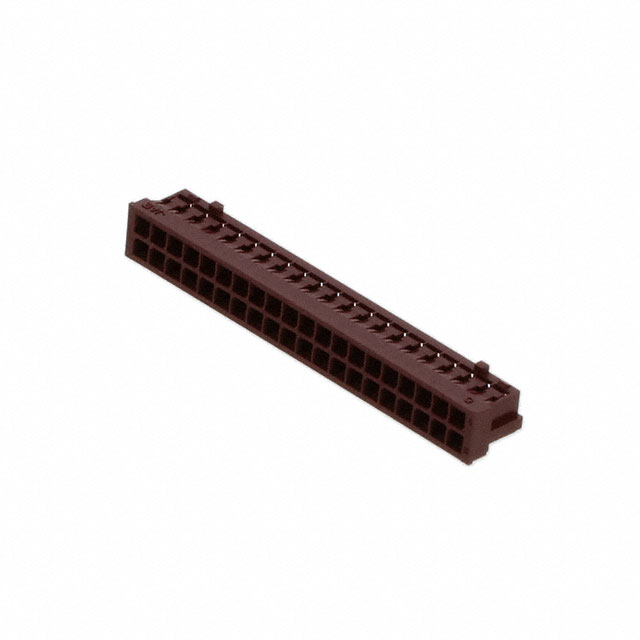

LY10-DC40BR

Active

JAE Electronics

CONN RCPT HSG 40POS 2.00MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 40POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	LY10-DC40BR

Color	Brown
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Insulation Material	Pitch [x]	Pitch [x]	Color	Mounting Type	Note	Fastening Type	Contact Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Type	Number of Positions	Row Spacing	Row Spacing
JAE Electronics LY10-DC40BR	Polyamide (PA66) Nylon 6/6 Glass Filled	0.079 in	2 mm	Brown	Free Hanging (In-Line)	Contacts Not Included	Friction Lock	Crimp	2	85 °C	-40 °C	Female Socket	Receptacle	40	2 mm	0.079 in
JAE Electronics LY10-DC4BR	Polyamide (PA66) Nylon 6/6 Glass Filled	0.079 in	2 mm	Brown	Free Hanging (In-Line)	Contacts Not Included	Friction Lock	Crimp	2	85 °C	-40 °C	Female Socket	Receptacle	4	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Rectangular Connectors - Housings Receptacle Brown 0.079" (2.00mm)
