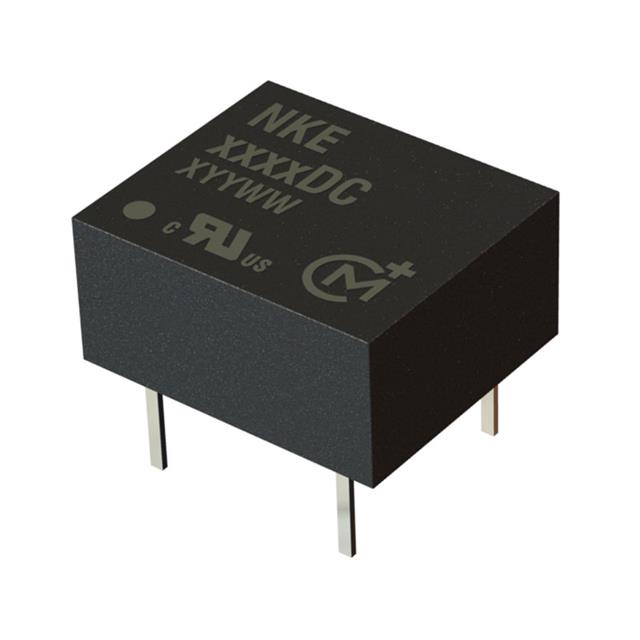

NKE0505DEC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 12 V

Part	Voltage - Isolation	Package / Case	Package / Case	Type	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs
Murata Power Solutions Inc. NKE0512DC	3000 V	8-DIP Module	4 Lead	Isolated Module	4.5 V	78 %	Through Hole	12 V	83 mA	5.5 V	11.5 mm	9.8 mm	0.39 "	0.21 in	5.4 mm	0.45 in	ITE (Commercial)	85 °C	-40 °C	1
Murata Power Solutions Inc. NKE0509DC	3000 V	8-DIP Module	4 Lead	Isolated Module	4.5 V	75 %	Through Hole	9 V		5.5 V	11.5 mm	9.8 mm	0.39 "	0.21 in	5.4 mm	0.45 in	ITE (Commercial)	85 °C	-40 °C	1
Murata Power Solutions Inc. NKE0512SC	3000 V	4-SIP Module		Isolated Module	4.5 V	78 %	Through Hole	12 V	83 mA	5.5 V	11.5 mm	6 mm	0.24 "	0.29 "	7.5 mm	0.45 in	ITE (Commercial)	85 °C	-40 °C	1
Murata Power Solutions Inc. NKE0503SC	3000 V	4-SIP Module		Isolated Module	4.5 V	74 %	Through Hole	3.3 V	303 mA	5.5 V	11.5 mm	6 mm	0.24 "	0.29 "	7.5 mm	0.45 in	ITE (Commercial)	85 °C	-40 °C	1
Murata Power Solutions Inc. NKE0505DEC	3000 V	8-DIP Module	4 Lead	Isolated Module	4.5 V	77 %	Through Hole	5 V	200 mA	5.5 V	11.5 mm	9.8 mm	0.39 "	0.21 in	5.4 mm	0.45 in	ITE (Commercial)	85 °C	-40 °C	1
Murata Power Solutions Inc. NKE0509SC	3000 V	4-SIP Module		Isolated Module	4.5 V	75 %	Through Hole	9 V		5.5 V	11.5 mm	6 mm	0.24 "	0.29 "	7.5 mm	0.45 in	ITE (Commercial)	85 °C	-40 °C	1
