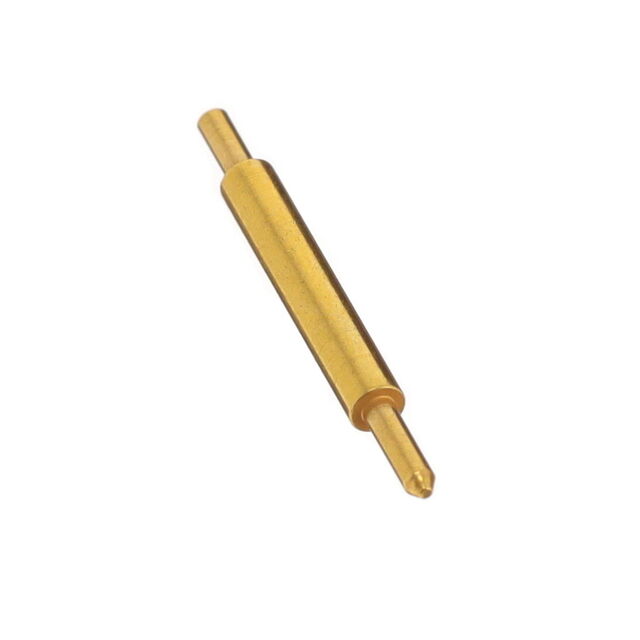

3126-3-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3126-3-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3126-3-00-15-00-00-08-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.8 mm |
| Flange Diameter [diameter] | 0.071 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.81 mm |
| Length - Above Flange [x] | 0.15 in |
| Length - Below Flange [x] | 2.87 mm |
| Length - Below Flange [x] | 0.113 in |
| Length - Overall [x] | 0.683 in |
| Length - Overall [x] | 17.35 mm |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.30 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.06 | |||
| 50 | $ 1.03 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.72 | |||
| 3000 | $ 0.65 | |||
Description
General part information
3126-3 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
Documents
Technical documentation and resources
No documents available
