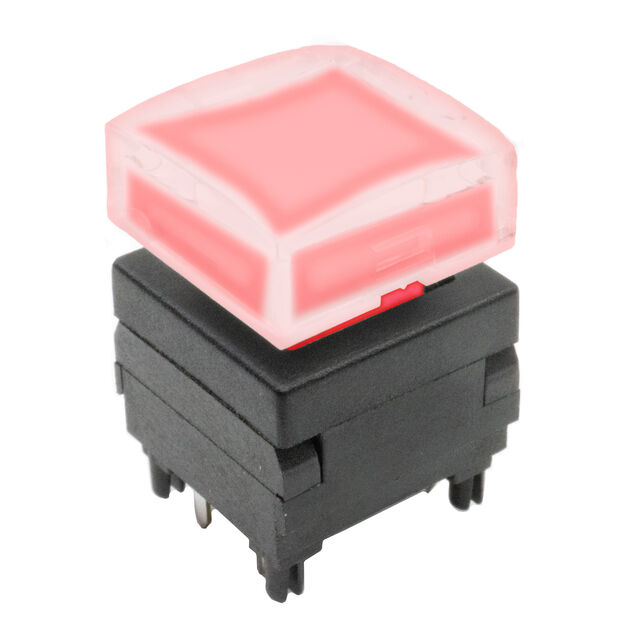

LP6OA2ASRG

Active

E-Switch

SWITCH PUSH DPST-NO 12MA 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH DPST-NO 12MA 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LP6OA2ASRG

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	12 mA
Electrical Life	200000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC, 1.95 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	12 V

Part	Termination Style	Current Rating (Amps)	Illumination Type, Color	Actuator Marking	Actuator Type	Switch Function	Type	Illumination Voltage (Nominal)	Circuit	Electrical Life	Voltage Rating - DC	Color - Actuator/Cap	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
E-Switch LP6OA2ASRG	PC Pin	12 mA	Green/Red LED	No Marking	Button Square	Off-Mom	Illuminated Standard	1.95 VDC 2 VDC	DPST-NO	200000 Cycles	12 V	Clear	200000 Cycles	-20 C	70 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO Standard, Illuminated Through Hole

Technical documentation and resources

No documents available
