OZ-SH-112D,294

Obsolete

TE Connectivity Potter & Brumfield Relays

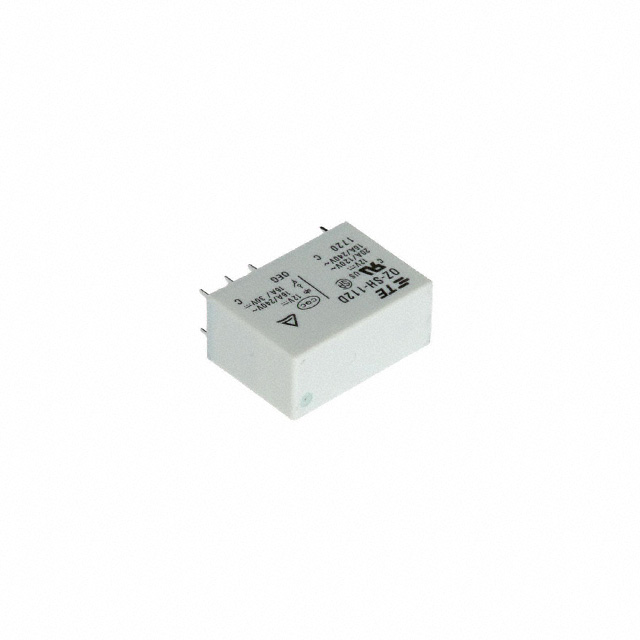

RELAY GEN PURPOSE SPDT 16A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OZ-SH-112D,294

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OZ-SH-112D,294

Approval Agency	CQC, UR, CSA, TUV
Coil Current	60 mA
Coil Resistance	200 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	16 A
Load - Max Switching	3840 VA, 380 W
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	0.6 VDC
Operate Time	15 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Fully
Switching Voltage	24 VDC, 240 VAC
Termination Style	PC Pin

OZ-SH Series

Part	Operate Time	Termination Style	Relay Type	Seal Rating	Coil Voltage	Mounting Type	Must Operate Voltage	Coil Type	Switching Voltage	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Coil Resistance	Coil Current	Must Release Voltage	Contact Form	Load - Max Switching	Contact Material	Approval Agency
TE Connectivity Potter & Brumfield Relays OZ-SH-105D,294	15 ms	PC Pin	General Purpose	Sealed - Fully	5 VDC	Through Hole	3.5 VDC	Non Latching	24 VDC 240 VAC	16 A	-30 ░C	60 °C	8 ms	47 Ohms	138.9 mA	0.25 VDC	SPDT (1 Form C)	380 W 3840 VA	Silver Cadmium Oxide (AgCdO)	CQC CSA TUV UR
TE Connectivity Potter & Brumfield Relays OZ-SH-105L,294	20 ms	PC Pin	General Purpose	Sealed - Fully	5 VDC	Through Hole	3.75 VDC	Non Latching	24 VDC 240 VAC	16 A	-30 ░C	70 °C	8 ms	47 Ohms	106 mA	0.25 VDC	SPDT (1 Form C)	380 W 3840 VA	Silver Cadmium Oxide (AgCdO)	CQC CSA TUV UR
TE Connectivity Potter & Brumfield Relays OZ-SH-112D,294	15 ms	PC Pin	General Purpose	Sealed - Fully	12 VDC	Through Hole	8.4 VDC	Non Latching	24 VDC 240 VAC	16 A	-30 ░C	60 °C	8 ms	200 Ohms	60 mA	0.6 VDC	SPDT (1 Form C)	380 W 3840 VA	Silver Cadmium Oxide (AgCdO)	CQC CSA TUV UR
TE Connectivity Potter & Brumfield Relays OZ-SH-124L,294	20 ms	PC Pin	General Purpose	Sealed - Fully	24 VDC	Through Hole	18 VDC	Non Latching	24 VDC 240 VAC	16 A	-30 ░C	70 °C	8 ms		21.8 mA	1.2 VDC	SPDT (1 Form C)	380 W 3840 VA	Silver Cadmium Oxide (AgCdO)	CQC CSA TUV UR
TE Connectivity Potter & Brumfield Relays OZ-SH-105LM1,294	20 ms	PC Pin	General Purpose	Sealed - Fully	5 VDC	Through Hole	3.75 VDC	Non Latching	24 VDC 240 VAC	16 A	-30 ░C	70 °C	8 ms	47 Ohms	106 mA	0.25 VDC	SPST-NO (1 Form A)	380 W 3840 VA	Silver Tin Oxide (AgSnO)	CQC CSA TUV UR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

OZ-SH Series

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
