PL375C-303

Active

Cinch Connectivity Solutions Trompeter

CONN TRT PLUG STR CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

PL375C-303

Active

Cinch Connectivity Solutions Trompeter

CONN TRT PLUG STR CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PL375C-303	PL375 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	Raychem 7528A5314	Raychem 7528A5314, TRC-75-1, TWC-124-2, M17/176-00002, Microdot 250-3884, Grumman GCB75GB1, TRC-50-1, TRC-50-2, TRC-75-2, Raychem 10613, BL1242, Times BL782, TWC-78-2, BL982
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TRT, Triaxial	TRT, Triaxial, Twinaxial
Connector Type	Plug, Male Pin (Concentric)	Plug, Male Pin (Concentric)
Contact Termination	Crimp	Crimp, Solder
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant

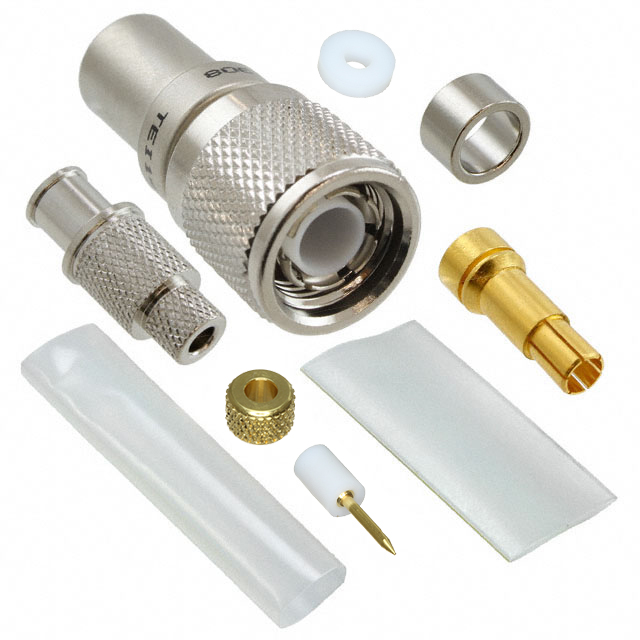

Includes	1 Strain Relief, 1 Connector, 1 Heat Shrink	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Wrench Clamp
Voltage Rating	400 V	400 V

PL375 Series

CONN TRT PLUG STR CRIMP

Part	Mounting Type	Frequency - Max [Max]	Housing Color	Impedance	Connector Style	Number of Ports	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Center Contact Material	Body Finish	Mating Cycles	Includes	Shield Termination	Center Contact Plating	Body Material	Voltage Rating
Cinch Connectivity Solutions Trompeter PL375C-303	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	Triaxial, TRT	1	Plug, Male Pin (Concentric)	Crimp	-65 ░C	165 °C	Raychem 7528A5314	Beryllium Copper	Nickel	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Crimp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375-33	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	Triaxial, TRT	1	Plug, Male Pin (Concentric)	Solder	-65 ░C	165 °C	TRC-75-1	Beryllium Copper	Nickel	500		Wrench Clamp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375CS-214	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	TRT, Twinaxial	1	Plug, Male Pin (Concentric)	Crimp	-65 ░C	165 °C	TWC-124-2	Beryllium Copper	Nickel	500	1 Connector, 1 Strain Relief	Crimp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375MC-201	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	TRT, Twinaxial	1	Plug, Male Pin (Concentric)	Crimp	-65 ░C	165 °C	M17/176-00002	Beryllium Copper	Nickel	500		Crimp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375-23	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	Triaxial, TRT	1	Plug, Male Pin (Concentric)	Solder	-65 ░C	165 °C	Microdot 250-3884	Beryllium Copper	Nickel			Wrench Clamp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375C-302	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	Triaxial, TRT	1	Plug, Male Pin (Concentric)	Crimp	-65 ░C	165 °C	Grumman GCB75GB1	Beryllium Copper	Nickel	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Crimp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375-32	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	Triaxial, TRT	1	Plug, Male Pin (Concentric)	Solder	-65 ░C	165 °C	TRC-50-1	Beryllium Copper	Nickel	500		Wrench Clamp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375-7	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	Triaxial, TRT	1	Plug, Male Pin (Concentric)	Solder	-65 ░C	165 °C	TRC-50-2, TRC-75-2	Beryllium Copper	Nickel	500		Wrench Clamp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375C-222	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	TRT, Twinaxial	1	Plug, Male Pin (Concentric)	Crimp	-65 ░C	165 °C	Raychem 10613	Beryllium Copper	Nickel	500	1 Connector, 1 Heat Shrink, 1 Strain Relief	Crimp	Gold	Brass	400 V
Cinch Connectivity Solutions Trompeter PL375-9	Free Hanging (In-Line)	500 MHz	Silver	Non-Constant	TRT, Twinaxial	1	Plug, Male Pin (Concentric)	Solder	-65 ░C	165 °C	BL1242, BL982, Times BL782, TWC-124-2, TWC-78-2	Beryllium Copper	Nickel	500		Wrench Clamp	Gold	Brass	400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 83.25
		10	$ 64.77
		25	$ 59.14

Description

General part information

PL375 Series

TRT, Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp
