1505-Y
ActiveCurtis Industries

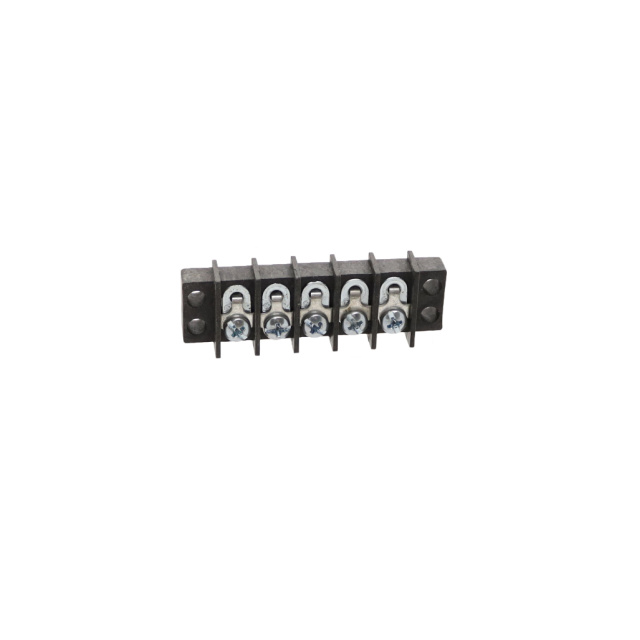

CONN BARRIER STRIP 5CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1505-Y
ActiveCurtis Industries
CONN BARRIER STRIP 5CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1505-Y | 1505 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | Closed, PC Pin |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Panel, Chassis, Chassis, Panel, Through Hole |
| Number of Circuits | 5 | 5 |
| Number of Rows | 2 | 2 |
| Number of Wire Entries | 10 | 10 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | - | Tin |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws with Captive Plate, Screws with Solder Lugs, Single, Screws, Screws with Solder Lugs, Dual |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.45 | |
| 10 | $ 5.28 | |||
| 30 | $ 4.54 | |||
| 50 | $ 4.26 | |||
| 100 | $ 3.94 | |||
| 250 | $ 3.62 | |||
| 500 | $ 3.43 | |||
| 1000 | $ 3.29 | |||
1505 Series
CONN BARRIER STRIP 5CIRC 0.375"
| Part | Mounting Type | Top Termination | Features | Number of Rows | Number of Circuits | Bottom Termination | Barrier Type | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Screw Material | Number of Wire Entries | Terminal Block Type | Operating Temperature | Pitch [x] | Pitch [x] | Material - Insulation | Current Rating (Amps) | Material Flammability Rating | Terminal Screw Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 1505W | Chassis, Panel | Screws with Captive Plate | Flange | 2 | 5 | Closed | 2 Wall (Dual) | 22 AWG | 10 AWG | Steel | 10 | Barrier Block | 110 °C | 9.53 mm | 0.375 in | Polyphenylene Oxide (PPO) | 20 A | UL94 V-0 | |
Curtis Industries 1505-3/4ST | Chassis, Panel | Screws with Solder Lugs, Single | Flange | 2 | 5 | Closed | 2 Wall (Dual) | 22 AWG | 10 AWG | 10 | Barrier Block | 110 °C | 9.53 mm | 0.375 in | Polyphenylene Oxide (PPO) | 20 A | UL94 V-0 | Tin | |
Curtis Industries 1505-YSY | Chassis, Panel, Through Hole | Screws | Flange | 2 | 5 | PC Pin | 2 Wall (Dual) | 22 AWG | 10 AWG | Steel | 10 | Barrier Block | 110 °C | 9.53 mm | 0.375 in | Polyphenylene Oxide (PPO) | 20 A | UL94 V-0 | |
Curtis Industries 1505-Y | Chassis, Panel, Through Hole | Screws | Flange | 2 | 5 | PC Pin | 2 Wall (Dual) | 22 AWG | 10 AWG | Steel | 10 | Barrier Block | 110 °C | 9.53 mm | 0.375 in | Polyphenylene Oxide (PPO) | 20 A | UL94 V-0 | |
Curtis Industries 1505-ST | Chassis, Panel | Screws with Solder Lugs, Dual | Flange | 2 | 5 | Closed | 2 Wall (Dual) | 22 AWG | 10 AWG | 10 | Barrier Block | 110 °C | 9.53 mm | 0.375 in | Polyphenylene Oxide (PPO) | 20 A | UL94 V-0 | Tin |
Description
General part information
1505 Series
5 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
