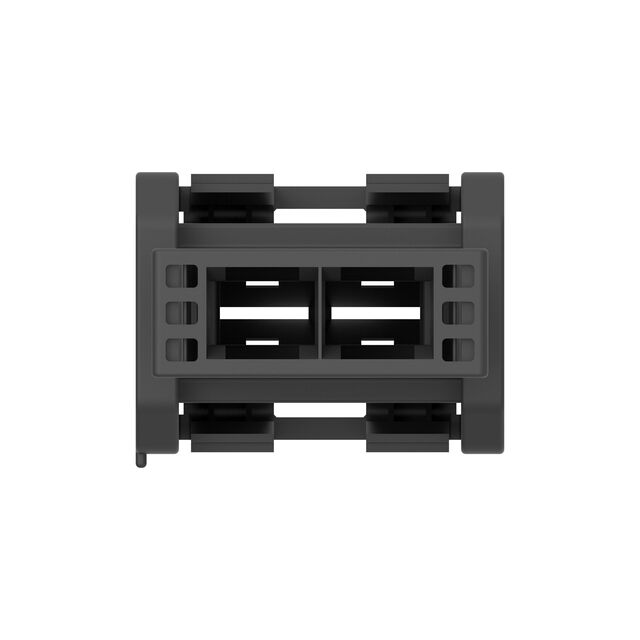

1355290-1

Active

TE Connectivity AMP Connectors

9,5 TAB HOUSING 2POS,BLACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

9,5 TAB HOUSING 2POS,BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1355290-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.492 in
Pitch [x]	12.5 mm

9,5 TAB HOUSING 2POS,BLACK

Part	Fastening Type	Number of Rows	Contact Type	Number of Positions	Pitch [x]	Pitch [x]	Features	Color	Contact Termination	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type
TE Connectivity AMP Connectors 1355290-1	Latch Lock	1	Tab	2	0.492 in	12.5 mm	Terminal Position Lock (TPA)	Black	Crimp	Polyamide (PA66), Nylon 6/6, Glass Filled	-40 °C	130 °C	Free Hanging (In-Line)	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.492" (12.50mm)
