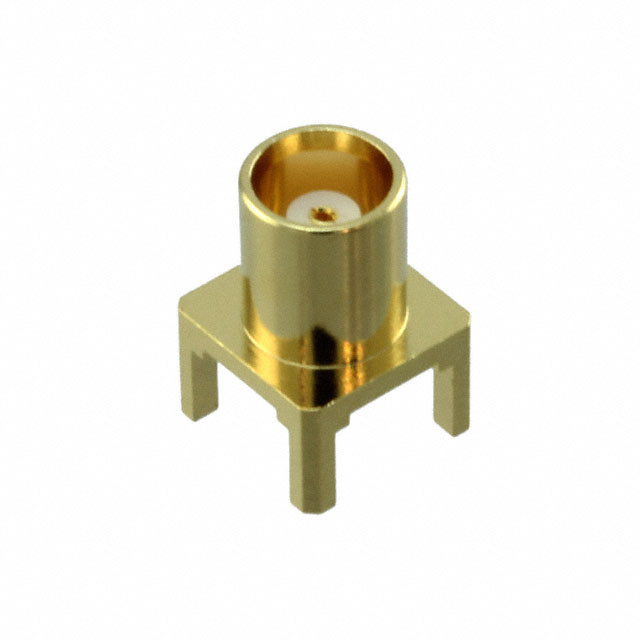

MCX-J-P-H-ST-MT1

Active

Samtec Inc.

RF COAXIAL, MCX JACK, 50 OHM, PCB

Search across all available documentation for this part.

Active

Samtec Inc.

RF COAXIAL, MCX JACK, 50 OHM, PCB

Technical Specifications

Parameters and characteristics for this part

Specification	MCX-J-P-H-ST-MT1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount, Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Plating	Body Material	Connector Style	Contact Termination	Center Contact Material	Impedance	Housing Color	Fastening Type	Number of Ports	Connector Type	Shield Termination	Dielectric Material	Mounting Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]
Samtec Inc. MCX-J-P-H-ST-MT1	Gold	Brass	MCX	Solder	Copper Alloy	50 Ohms	Gold	Snap-On	1	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	Surface Mount Through Hole	Gold	125 °C	-65 ░C	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 50 Ohms Surface Mount, Through Hole Solder
