325-066-500-208

Active

EDAC Inc.

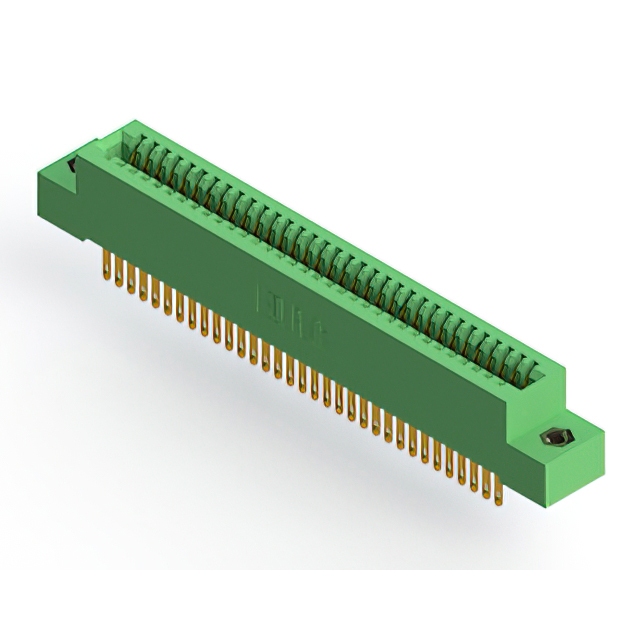

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 66 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-066-500-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 66 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-066-500-208

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

325-066 Series

Part	Material - Insulation	Number of Positions	Termination	Card Type	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Gender	Contact Finish	Mounting Type	Number of Positions/Bay/Row [custom]	Read Out	Termination Rows	Pitch [x]	Pitch [x]	Number of Rows	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-066-540-201	Diallyl Phthalate (DAP)	66	Wire Wrap	Non Specified - Dual Edge	Green	Cantilever	10 Áin	0.25 Ám	3.18 mm	0.125 in	Female	Gold	Through Hole	33	Dual	2	2.54 mm	0.1 in	2	Copper Alloy	125 °C	-65 ░C
EDAC Inc. 325-066-500-208	Diallyl Phthalate (DAP)	66	Solder Eyelet(s)	Non Specified - Dual Edge	Green	Cantilever	10 Áin	0.25 Ám	3.18 mm	0.125 in	Female	Gold	Through Hole	33	Dual	2	2.54 mm	0.1 in	2	Copper Alloy	125 °C	-65 ░C	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-066-500-207	Diallyl Phthalate (DAP)	66	Solder Eyelet(s)	Non Specified - Dual Edge	Green	Cantilever	10 Áin	0.25 Ám	3.18 mm	0.125 in	Female	Gold	Through Hole	33	Dual	2	2.54 mm	0.1 in	2	Copper Alloy	125 °C	-65 ░C	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-066-540-209	Diallyl Phthalate (DAP)	66	Wire Wrap	Non Specified - Dual Edge	Green	Cantilever	10 Áin	0.25 Ám	3.18 mm	0.125 in	Female	Gold	Through Hole	33	Dual	2	2.54 mm	0.1 in	2	Copper Alloy	125 °C	-65 ░C	Flush Mount Top Opening Unthreaded	0.16 in	4.06 mm
EDAC Inc. 325-066-540-208	Diallyl Phthalate (DAP)	66	Wire Wrap	Non Specified - Dual Edge	Green	Cantilever	10 Áin	0.25 Ám	3.18 mm	0.125 in	Female	Gold	Through Hole	33	Dual	2	2.54 mm	0.1 in	2	Copper Alloy	125 °C	-65 ░C	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-066-520-207	Diallyl Phthalate (DAP)	66	Solder	Non Specified - Dual Edge	Green	Cantilever	10 Áin	0.25 Ám	3.18 mm	0.125 in	Female	Gold	Through Hole	33	Dual	2	2.54 mm	0.1 in	2	Copper Alloy	125 °C	-65 ░C	Flush Mount M3 Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.77
Newark	Each	1	$ 16.84
		100	$ 13.01
		250	$ 10.93
		500	$ 9.66
		1000	$ 7.71

Description

General part information

325-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
