325-035-500-101

Active

EDAC Inc.

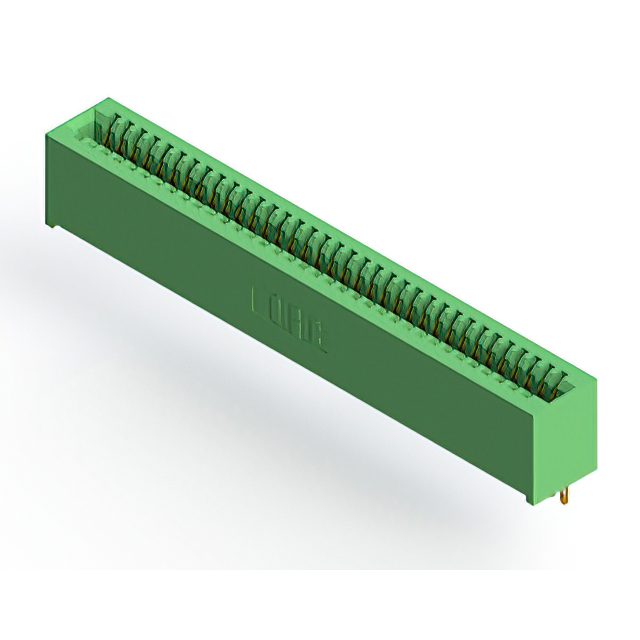

CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-035-500-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-035-500-101

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	35
Number of Positions/Bay/Row [custom]	35
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

325-035 Series

Part	Termination Rows	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Read Out	Gender	Number of Rows	Color	Flange Feature	Contact Finish	Material - Insulation	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Type	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-035-540-107	1	Copper Alloy	125 °C	-65 ░C	35	Single	Female	1	Green	Flush Mount M3 Threaded Insert Top Opening	Gold	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Through Hole	35	Cantilever	2.54 mm	0.1 in	3.18 mm	0.125 in
EDAC Inc. 325-035-500-101	1	Copper Alloy	125 °C	-65 ░C	35	Single	Female	1	Green		Gold	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder Eyelet(s)	10 Áin	0.25 Ám	Through Hole	35	Cantilever	2.54 mm	0.1 in	3.18 mm	0.125 in
EDAC Inc. 325-035-500-108	1	Copper Alloy	125 °C	-65 ░C	35	Single	Female	1	Green	4-40 Flush Mount Threaded Insert Top Opening	Gold	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder Eyelet(s)	10 Áin	0.25 Ám	Through Hole	35	Cantilever	2.54 mm	0.1 in	3.18 mm	0.125 in
EDAC Inc. 325-035-520-107	1	Copper Alloy	125 °C	-65 ░C	35	Single	Female	1	Green	Flush Mount M3 Threaded Insert Top Opening	Gold	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Through Hole	35	Cantilever	2.54 mm	0.1 in	3.18 mm	0.125 in
EDAC Inc. 325-035-540-101	1	Copper Alloy	125 °C	-65 ░C	35	Single	Female	1	Green		Gold	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Through Hole	35	Cantilever	2.54 mm	0.1 in	3.18 mm	0.125 in
EDAC Inc. 325-035-520-109	1	Copper Alloy	125 °C	-65 ░C	35	Single	Female	1	Green	Flush Mount Top Opening Unthreaded	Gold	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Through Hole	35	Cantilever	2.54 mm	0.1 in	3.18 mm	0.125 in	0.16 in	4.06 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.69
Newark	Each	1	$ 13.74
		100	$ 9.87
		250	$ 7.77
		500	$ 6.48
		1000	$ 4.77

Description

General part information

325-035 Series

35 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
